26. Digital Image Correlation

26.1. Digital Image Correlation

_images/DIC.png

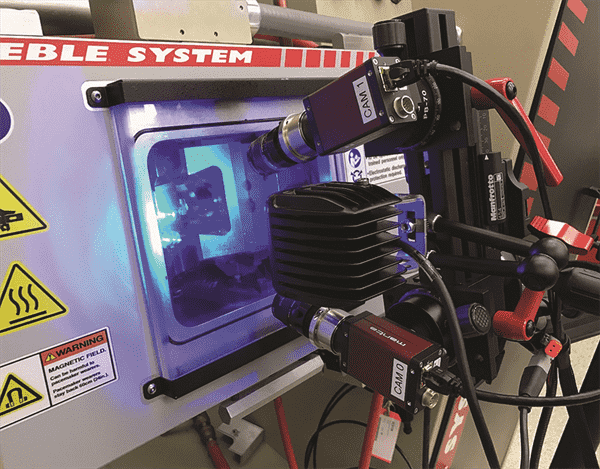

Fig. 26.1 DIC System Installed on a General-Purpose MCU.

Digital Image Correlation (DIC) can be used in conjunction with a Gleeble system for 3D non-contact optical measurements of deformation and strain. DSI has developed a successful combination of high-performance cameras, lighting, fixturing, and licensed software to produce accurate results, even at elevated temperatures.

Digital Image Correlation can be used on a number of standard Gleeble tests, including tensile tests, Strain Induced Crack Opening (SICO) and, uniaxial compression.

High-resolution cameras and intense blue LED lighting are focused on specimens through the front or rear windows of the Gleeble. DIC systems provide thousands of strain measurements across a specimen, allowing characterization of strain fields in an entire test region. Traditional contact measurement systems provide only 2-point strain measurements – from one point to another point.

Key Features:

  • Non-contact measurement
  • No mechanical interaction with the sample
  • No need for precise placement
  • Enables testing of complex shapes and geometries
  • Numerical deformation of your experimental images with finite element displacements fields
  • Eliminates strain gages and displacement sensors
  • Performance Analysis
  • Flexibility to set various DIC parameters with automated tools to determine optimum DIC settings for each test
  • Parallel processing of various DIC settings: Subset, Step, Interpolation, Strain Windows, etc.
  • Virtual Fields Method (VFM) technique for processing full-field kinematic measurements to extract parameters driving the mechanical behavior of materials
  • Materials Properties & Identification with VFM
  • Reconstruction of stress fields at the surface of the specimen
  • Applicable to horizontal axial, horizontal shear, vertical axial, and vertical shear loading conditions
  • Intelligent optimization with flexible boundary conditions
  • Isotropic linear elasticity
  • Orthotropic linear elasticity
  • Hardening laws: Bilinear, Swift, Voce, Ludwik
  • FEA Validation
  • Allows for a thorough comparison between DIC and FEA
  • Establish a one-to-one relationship between model and experiment by adopting identical filtering

26.2. Compatible DIC Systems

DSI has successfully integrated Digital Image Correlation systems from a variety of manufacturers into Gleeble equipment. If you have an existing DIC system, please contact the Gleeble Service Team to confirm compatibility and create an integration plan.

We are now able to offer new DIC systems that have been optimized for Gleeble experiments while also enabling the DIC system to be used on other equipment in your laboratory. DSI has worked extensively to develop a customized suite of equipment including cameras, software, lighting, specimen mounting rotational kits, and specimen preparation solutions.

DSI has partnered with Trilion USA, a GOM / Aramis Certified Partner, to configure an affordable DIC solution ideal for a wide range of Gleeble simulations.

This package includes the primary hardware and software required to add DIC capability to your Gleeble platform. This technology is highly accurate and provides robust data across a specimen, instead of point-to-point measurements.

Part Number Description Sold As
TRIL001
Gleeble SNAP Digital Image Correlation System (DIC):
  • 12 megapixel camera pair with 30 frames per second (fps) at full resolution (100 fps or higher available at a reduced resolution)

This package includes the primary hardware and software required to add DIC capability to your Gleeble platform. This technology is highly accurate and provides robust data across a specimen, instead of point-to-point measurements.

System includes:
  • Trilion Snap Sensor Setup
  • Two 12-megapixel, 30 fps cameras at full 4,096 x 3,000 pixels resolution.
  • Optics: 35 mm metal lenses with locking screws.
  • Trilion Basics camera bar, 300 mm length with studio stand.
  • Custom lighting solution for high-temperature applications, including mounting and accessories.
Trilion Snap 3D Software:
  • Data Acquisition (DAQ) Module.
  • Multi-camera software module.
  • DAQ software module with sync cables and USB DAQ.
GOM Correlate Professional:
  • Single license for measurement, analysis and reporting.
  • Creates calibration file and project file.
  • Process automation capabilities with scripting and Gleeble-based project templates.
  • Automated calculation and reporting of material testing results.
  • Use on any Windows 7/10 PC with USB license.
  • 1 year of software updates included.
GOM Correlate:
  • Free evaluation software for 2D DIC.
  • Complete 2D DIC acquisition and processing.
  • Serves as a viewer for all measured results (2D and 3D) created with ARAMIS.
  • Unlimited licenses with yearly updates.
Includes:
  • Calibration Cube.
  • Training.
  • Two days of on-site training by DIC expert.
  • 1-Year Limited Warranty.
 Ea.

Part Number Description Sold As
TRIL002
Gleeble SNAP High-Speed Digital Image Correlation System (DIC)
  • 12-megapixel camera pair with 187 frames per second (fps) at full resolution (1,000 fps or higher available at a reduced resolution)

This package includes the primary hardware and software required to add DIC capability to your Gleeble platform. This technology is highly accurate and provides robust data across a specimen, instead of point-to-point measurements.

System includes:
  • Trilion Snap Sensor Setup.
  • Two 12-megapixel, 187 fps cameras at full 4,096 x 3,000 pixels resolution.
  • Higher speed (fps) available at a reduced resolutions, for example, 1,000 fps can be achieved at 2,048 x 1,000 pixels resolution.
  • Optics: 35 mm metal lenses with locking screws.
  • Trilion Basics camera bar, 300 mm length with studio stand.
  • Custom lighting solution for high-temperature applications, including mounting and accessories.
Trilion Snap 3D Software:
  • Data Acquisition (DAQ) Module.
  • Multi camera software module.
  • DAQ software module with sync cables and USB DAQ.
GOM Correlate Professional:
  • Single license for measurement, analysis and reporting .
  • Creates calibration file and project file.
  • Process automation capabilities with scripting and Gleeble-based project templates.
  • Automated calculation and reporting of material testing results.
  • Use on any Windows 7/10 PC with USB license.
  • 1 year of software updates included.
GOM Correlate:
  • Free evaluation software for 2D DIC.
  • Complete 2D DIC acquisition and processing.
  • Serves as a viewer for all measured results (2D and 3D) created with ARAMIS.
  • Unlimited licenses with yearly updates.
Includes:
  • Calibration Cube.
  • Training.
  • Two days of on-site training by DIC expert.
  • 1-Year Limited Warranty.
 Ea.

Part Number Description Sold As
ARA-2.3
ARAMIS 2.3 Megapixel Digital Image Correlation System
  • 2.3 megapixel 3D camera pair.
  • 1,936 x 1,216 pixels.
  • Frame rate up to 130 fps at full resolution.
  • Up to 450fps with GOM Testing controller (included).
System includes:
  • ARAMIS Professional software for image acquisition, data analysis and live processing.
  • GOM Testing controller (8-channel data logger).
  • High precision lenses.
  • Factory certified calibration panels.
  • 150 mm frame with 350 mm working distance.
  • 55, 90 and 140 mm fields of view.
LED lighting:
  • Stable studio stand to hold the sensor.
  • Standard image processing workstation.
Includes:
  • 1-year Warranty .
  • Trilion Gold support.
 Ea.
Part Number Description Sold As
ARA-12
ARAMIS 12 Megapixel Digital Image Correlation System:
  • 12 megapixel 3D camera pair.
  • 4,096 x 3,068 pixels.
  • Frame rate up to 25 fps at full resolution.
  • 75 fps at 4,096 x 1,000 pixels (1/3 image).
  • 100 fps at reduced resolution (binning).
System includes:
  • ARAMIS Professional software for image acquisition, data analysis and live processing.
  • GOM Testing Controller (8-channel data logger).
  • High-precision lenses.
  • Factory certified calibration panels.
  • 150 mm frame with 350 mm working distance.
  • 120 mm field of view.
LED lighting:
  • Stable studio stand to hold the sensor.
  • Standard image processing workstation.
Includes:
  • 1-year Warranty and Trilion Gold support.
 Ea.
Part Number Description Sold As
ARA-SRX
Aramis SRX Digital Image Correlation System:
  • ARAMIS SRX Professional.
  • 12 megapixel camera pair (4,096 x 3,068 pixels).
  • Frame rate with PC configuration: 75 fps at full resolution and up to 490 fps at reduced resolution.
System includes:
  • ARAMIS Professional software for image acquisition, data analysis and live processing (1 license/seat).
  • GOM Testing Controller (8-channel data logger).
  • High-precision lenses.
  • Factory-certified calibration panels.
LED Lighting:
  • Custom lighting solution for high-temperature applications, including mounting and accessories.
  • Includes a high performance computer workstation due to increased performance requirements.
  • 180 mm frame, 130 mm measuring volume. (Recommended for specimens with gauge length less than 130mm, including standard tensile tests).
Includes:
  • 1-year Warranty and Gold support.
 Ea.
Part Number Description Sold As
ARA-SRX-TRBO
Aramis SRX Turbo Digital Image Correlation System:
  • ARAMIS SRX Turbo Professional.
  • 12 megapixel camera pair 335 fps at full resolution and up to 1,000 fps at reduced resolution (1,920 x 1,000).
System includes:
  • ARAMIS Professional software for image acquisition, data analysis and live processing (1 license/seat).
  • GOM Testing Controller (8-channel data logger).
  • Factory certified measuring volumes.
  • High-precision lenses.
  • Factory-certified calibration Panels.
  • Custom lighting solution for high-temperature applications, including mounting and accessories.
  • Includes a high-performance computer workstation due to increased performance requirements.
  • 180 mm frame, 130 mm measuring volume. (Recommended for specimens with gauge length less than 130 mm, including standard tensile tests).
Includes:
  • 1-year Warranty and Gold support.
 Ea.

26.2.1. DIC Correlation Software and Accessories

Part Number Description Sold As
GOM-CP-ST Seat License - GOM Correlate Professional. Portable license resides on USB. Additional license(s) are recommended when data analysis is required away from the Gleeble workstation. Ea.
GOM-CP-N Network License for Single User - GOM Correlate Professional. License is managed via network access - no USB required. Additional license(s) are recommended when data analysis is required away from the Gleeble workstation. Ea.
SNAP-LNS-12 12 mm lenses - SNAP -DIC Lens for 12 Megapixel USB Cameras (30 fps) with calibration panel - Recommended for large specimens - Strip Annealing Simulations Ea.
SNAP-LNS-35 35 mm lenses - SNAP -DIC Lens: 12 Megapixel USB Cameras (30 fps) with calibration panel - Recommended for specimens with gauge length less than 100mm - Tensile testing - Included in TRIL001 and TRIL002 Ea.
SNAP-LNS-50 50 mm lenses - SNAP -DIC Lens: 12 Megapixel USB Cameras (30 fps) with calibration panel Ea.
SNAP-LNS-100 100 mm lenses - SNAP -DIC Lens: 12 Megapixel USB Cameras (30 fps) with calibration panel - Recommended for specimens with gauge length of less than 25mm - Uniaxial Compression Testing Ea.
ARA-LNS-70 70 mm Measuring Volume lens and calibration cube - Aramis Pro - Recommended for specimens with gauge length of less than 25 mm - Uniaxial Compression Testing Ea.
ARA-LNS-200 200 mm Measuring Volume lens and calibration cube - Aramis Pro Recommended for large specimens - Strip Annealing Simulations Ea.

Note

Additional lenses for different measuring volumes can be purchased at a later date.

26.3. DIC Integration Package

Current Gleeble Users

Current Gleeble users can access the 59045 Digital Image Correlation (DIC) Integration Package operator’s manual here.

The 59045 Digital Image Correlation (DIC) Integration Package is designed to better integrate a DIC system with the Gleeble. The package includes a small module (shown below) as well as BNC cables to facilitate a simple and easy-to-use interface between the Gleeble and a compatible DIC system. The 59045 Digital Image Correlation (DIC) Integration Package features the following:

  • A single ±10 VDC output BNC connection for data transmission from the Gleeble to a DIC system.
  • Two ±10 VDC analog input BNC connections for data transmission from a compatible DIC system to the Gleeble.
  • 5 VDC ground referenced pulse trigger for data acquisition synchronization between the Gleeble and a compatible DIC system.
  • Support for multiple modules.
_images/59045.png

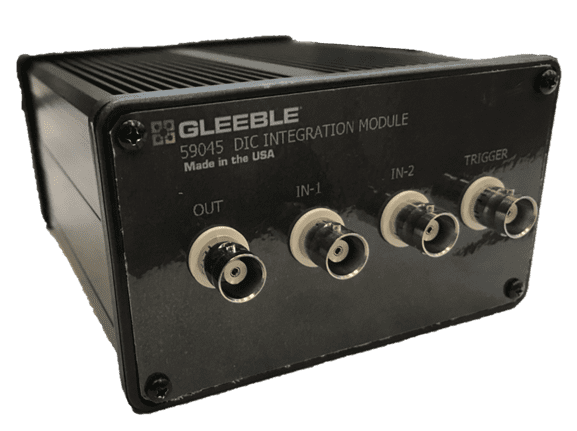

Fig. 26.3 DIC Integration Package - DSI# 59045.

Part Number Description Sold As
59045 Digital Image Correlation (DIC) Integration Package - GTC Systems only Ea.
39150
DIC Data Integration Package - Series 3 Systems.
  • Integrates Gleeble data with DIC data providing synchronization between the two devices.
  • Configurable to any two DIC system variables and two Gleeble data variables.
  • Analog +/-10 VAC full scale.
  • Data received at frame-rate of the DIC system.
  • General-Purpose High-Speed Trigger.
  • 5VDC (compatible with 5V TTL).
  • Used to synchronize data collection between the two systems.
 Ea.

DIC Integration-Required Accessories

Part Number Description Sold As
DIC-TRAIN-ADV
Advanced On-Site DIC Software and Technique Training:
  • Training to be conducted by DIC representative, expert, or certified DSI Service Engineer.
  • Includes 2 days on site.
  • Charge includes travel costs.
 Ea.
59025 Accessory Instrument Module - GTC Systems only
39152
Mounting Equipment for Digital Image Correlation (DIC) System.
  • This package provides all brackets needed to mount cameras and light fixtures to the Gleeble.
  • It provides a position locator for the devices, allowing easier loading and unloading of specimens.
  • The mounting equipment allows the user to set up the cameras at appropriate locations for various specimen geometries.
  • This assembly may be used in place of the standard tripod mounting used with standard DIC systems.
  • This package does not include DIC cameras or lighting.
 Ea.

DIC Integration Optional Accessories

Part Number Description Sold As

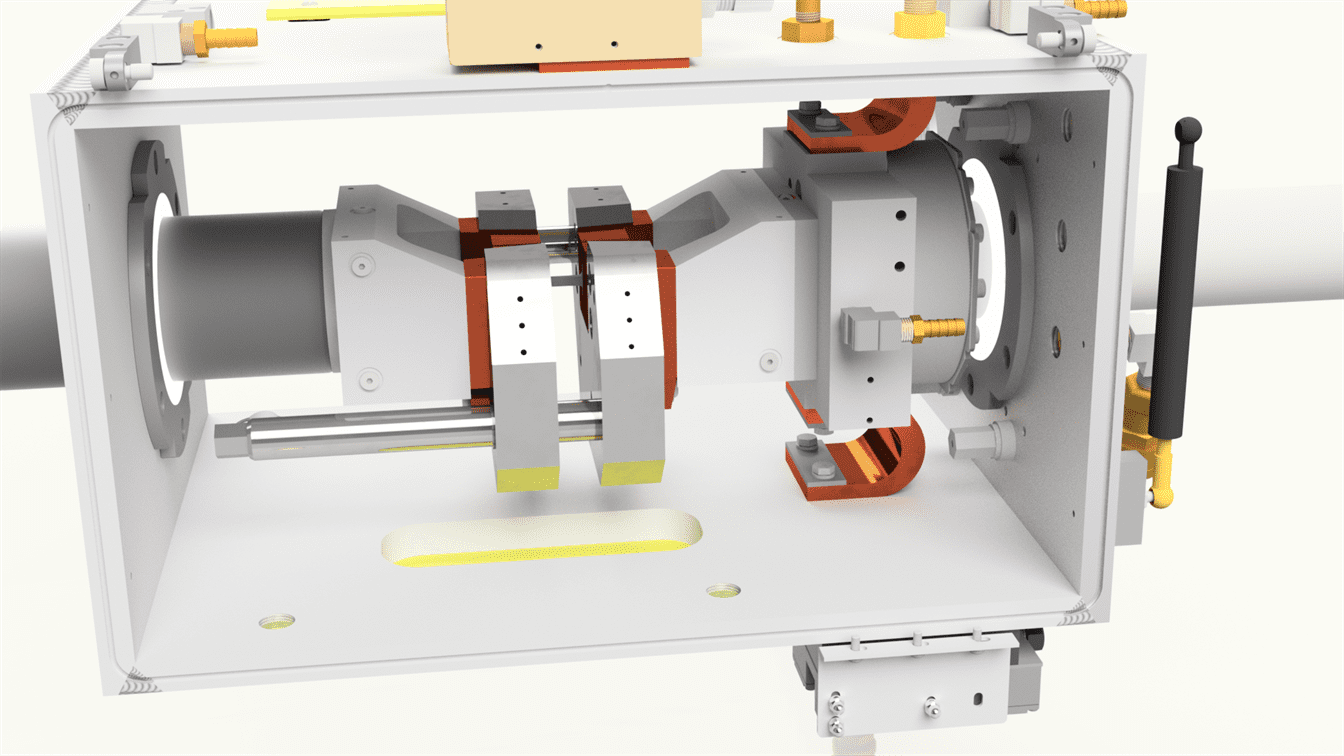

37500 Pocket Jaw Rotation Kit
9510-005 Low Force Pocket Jaw Rotation Kit
39151
Camera Lighting Integration Package:
  • Includes the additional lighting and fixtures required for operating Digital Imaging Correlation systems at temperatures up to 1,100°C (2,012°F).
  • Recommended for any testing above 200°C (392°F).
 Ea.
DIC036
DIC Speckling Kit for High-Temperature Applications.
  • Paint Spray Gun with connections to Gleeble compressed air system.
  • High-Temperature Black Marker (DIC032).
  • Alumina Powder.
  • Accessories, including sanding belt, bottles, hose, and solvent.
 Ea.
DIC031 Gravity Paint Spray Gun Ea.
DIC032 High-Temp Black Marker - Oil Based - Rated to 1,093°C (1,902°F) Ea.
