30. Thermocouple Welder and Wire¶

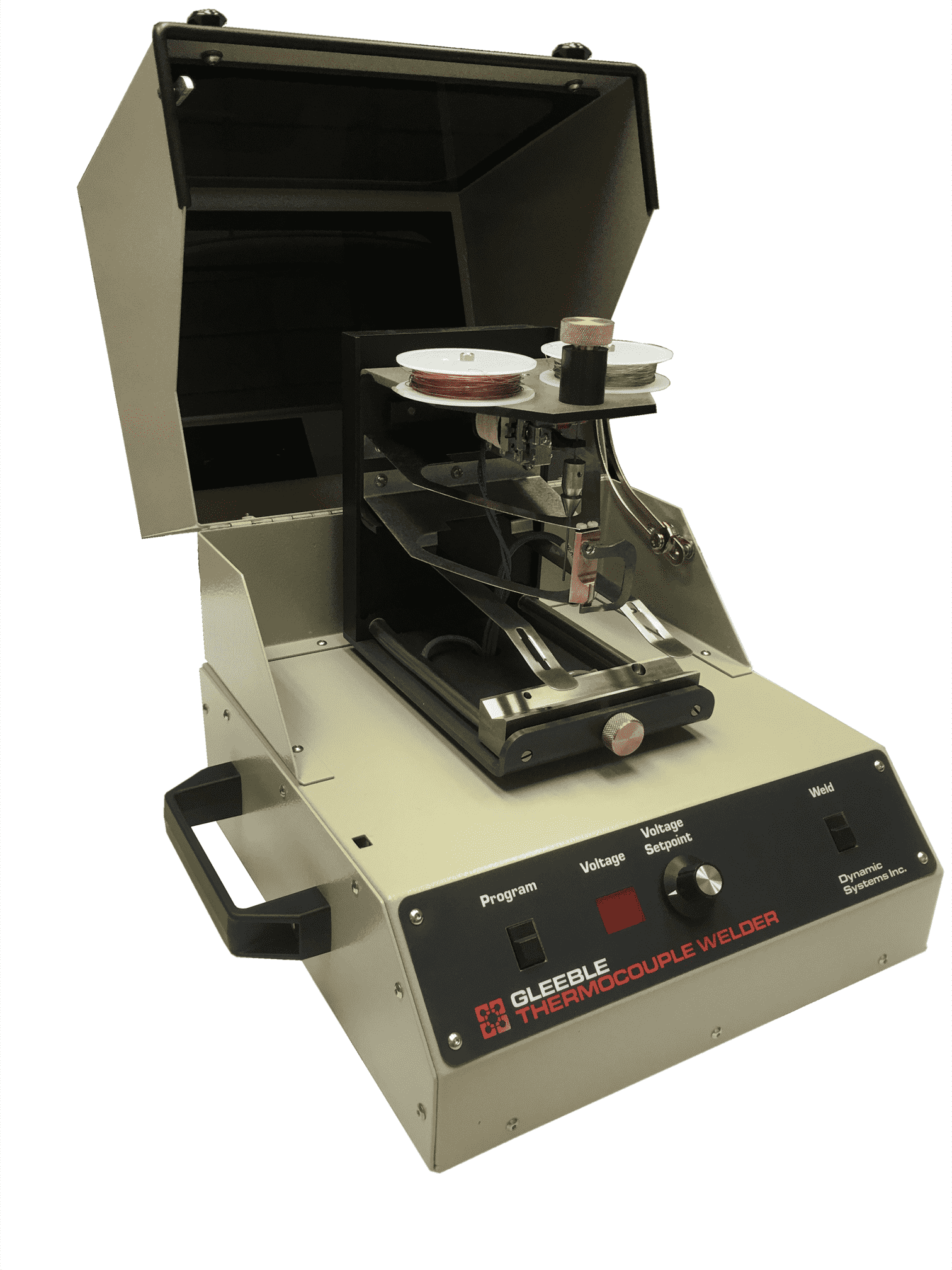

Fig. 30.1 Fine Wire Thermocouple Welder - DSI# 35200.
30.1. Thermocouple Welder¶
The 35200 Thermocouple Welder is used to attach individual thermocouple wires to Gleeble specimens for the purpose of temperature measurement and control. The unit consists of an integrated welding jig and controller. The jig holds the specimen and feeds the thermocouple wire during the weld. A movable guard is lowered over the jig prior to the weld to protect the operator from sparks, flash, and electric shock. The controller allows the operator to set the desired weld voltage manually, or through the use of four pre-programmed presets, and to initiate the weld itself.
| Part Number | Description | Sold As |
|---|---|---|
| 35200 | Fine Wire Thermocouple Welder Kit [CE Mark] | Kit |
| Optional Accessories | ||
| 35200A | Thermocouple Welder Starter Kit - DSI# 35200A | Kit |
| 35202 | Thermocouple Welder Rebuild Kit - DSI# 35202 | Kit |
30.2. Thermocouple Wire¶
There are many types of thermocouples which can be used for testing. Depending on the temperature range, different thermocouple types can be chosen. The most commonly used thermocouples in Gleeble testing are Type K and Pt Rh-Pt types such as Type S, R, and B. Gleeble GTC and 500 series systems can support additional thermocouple wire types not shown below. Contact Dynamic Systems for additional information regarding the use of alternate thermocouple wire types.
Non-contact temperature measurement is available with an optional Pyrometer Control Camera.
Gleeble systems are capable of recording specimen temperature with various thermocouple wire types. The following types of thermocouple wire can be used on any Gleeble system.
| Part Number | TC Type | Material | Sold As |
|---|---|---|---|
| Operating Range: 0 - 1,450°C (32 - 2,642°F) | |||
| TC005 | R- or S- | Pt 100% | Inch |
| TC006 | R+ | Pt 87% - Rh 13% | Inch |
| TC009 | S+ | Pt 90% - Rh 10% | Inch |
| Operating Range: -200 - 1,250°C (-328 - 2,282°F) | |||
| TC014 | K- | Alumel | Spool |
| TC015 | K+ | Chromel | Spool |
| Operating Range: 0 - 1,700°C (32 - 3,092°F) | |||
| TC017 | B- | Pt 94% - Rh 6% | Inch |
| TC018 | B+ | Pt 70% - Rh 30% | Inch |
| Operating Range: 0 - 750°C (32 - 1,382°F) | |||
| TC030 | J+ | Fe 100% | Spool |
| TC031 | J- | Constantan | Spool |
| Operating Range: -200 - 900°C (-328 - 1,652°F) | |||
| TC032A | E+ | Chromega | Spool |
| TC033 | E- | Constantan | Spool |
| Operating Range: 0 - 2,320°C (32 - 4,208°F) | |||
| TC010 | C+ | W 95% - Re 5% | Inch |
| C- | W 74% - Re 26% | ||
Note
TC wire types C, K, J, and E have a nominal wire diameter of 0.254 mm (0.01 in). TC wire types R, S, and B have a nominal wire diameter of 0.2032 mm (0.008 in).
Note
Gleeble systems can support additional thermocouple wire types not shown. Contact Dynamic Systems for additional information regarding the use of alternate thermocouple wire types.
30.3. Thermocouple Measurement Assemblies¶
The Dual Channel Thermocouple Input series of modules is designed to add thermocouple input channels to Gleeble 500 Series systems and the HDS-V40. Each module may be connected to any available Gleeble PnP port, providing two thermocouple input channels of a given type.
| Part Number | Thermocouple Type | Description |
|---|---|---|
| 59004 | K | Dual Channel Input Box |
| 59005 | S | Dual Channel Input Box |
| 59006 | R | Dual Channel Input Box |
| 59007 | B | Dual Channel Input Box |
| 59008 | E | Dual Channel Input Box |
| 59014 | J | Dual Channel Input Box |
Note
A single K-type Dual Channel Input Box is included standard if required.
30.4. Thermocouple Consumables¶
| Part Number | Description | Sold As |
|---|---|---|
| TC007 | Single-Hole Ceramic Insulating Tubes 0.020 ID | Package |
| TC008 | Two-Hole Ceramic Insulating Tubes 0.020 ID | Package |
| TC011 | Single-Hole Ceramic Insulating Tubes 0.031 ID | Package |
| TC026 | Double-Hole Round Ceramic Insulating Tubes 0.032 ID | Ea. |
| TU010 | Clear Teflon TC Insulator Tubing | Foot |
| TU011 | Black Teflon TC Insulator Tubing | Foot |
| G176B | Red Thermocouple Push Post | Ea. |
| G176C | Black Thermocouple Push Post | Ea. |
30.4.1. Thermocouple Welder Starter Kit - DSI# 35200A¶
The Thermocouple Welder Starter Kit includes consumables and tools used by many researchers to fully utilize the Gleeble Thermocouple Welder.
| Part Number | Description | Sold As |
|---|---|---|
| 35200A | Thermocouple Welder Starter Kit | Kit |
| 35200A Kit Includes | ||
| TC014 | K- Thermocouple wire | |
| TC015 | K+ Thermocouple wire | |
| HW017 | Acid Brush | |
| HW008A | High-Temperature Air Set | |
| G420F | Wire Cutters | |
| G420H | Ceramic Disc Magnet | |
| TC007 | 0.020 ID Single-Hole TC Ceramic Tube | |
| TC011 | 1/32 ID Single-Hole TC Ceramic Tube | |
30.4.2. Thermocouple Welder Rebuild Kit - DSI# 35202¶
The Thermocouple Welder Rebuild Kit includes all the hardware and assemblies to repair a welding head that becomes worn from use.
| Part Number | Description | Sold As |
|---|---|---|
| 35202 | Thermocouple Welder Rebuild Kit | Kit |
| 35202 Kit Includes | ||
| GA00402A | TC Welder Wire Jaw | |
| GA00402B | TC Welder Wire Jaw SS Clip | |
| GA00402F | TC Welder Retainer Bushing | |
| All required installation screws and washers | ||
