32. Measurement Gauge Accessories & Gleeble Repair Parts

32.1. Accessory Instrument Module

_images/59025.png

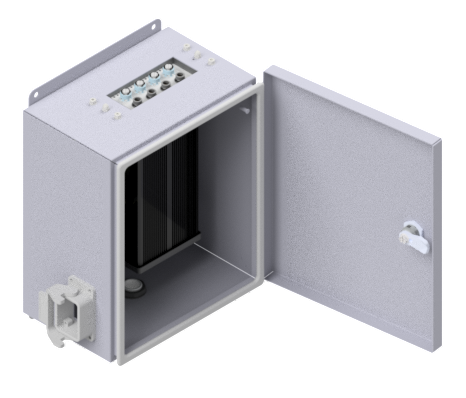

Fig. 32.1 Accessory Instrument Module - DSI# 59025.

The Instrumentation Expansion Module is used in a variety of Gleeble accessory applications. This module integrates options such as the LED Micrometer or Digital Image Correlation System with the Gleeble for input and output of data.

Part Number Description Sold As
59025 Accessory Instrument Module Ea.

32.2. Non-Contact Optical Measuring Device Window Feedthrough

_images/32846.png

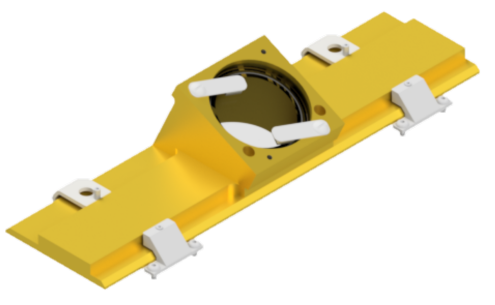

Fig. 32.2 General-Purpose MCU Window Feedthrough - DSI# 32846.

Part Number Description Sold As
32845 3180 Mounting Kit - 59063 or 39112 Optical Dilatometer and Extensometer Systems Kit
32846 General-Purpose MCU Window Feedthrough Mounting Assembly - 59063 or 39112 Optical Dilatometer and Extensometer Systems Kit
32847 Hydrawedge II Window Feedthrough Mounting Assembly - 59063 or 39112 Optical Dilatometer and Extensometer Systems Kit
WIND003 3 in dia Laser Window Glass Ea.
WIND006 3 in dia Borosilicate Laser Window Glass Ea.

32.3. Pocket Jaw Rotation Kits

General-Purpose MCU Pocket Jaw Rotation Kit

_images/37500.png

Fig. 32.3 General-Purpose MCU Pocket Jaw Rotation Kit - DSI# 37500.

The 37500 General-Purpose MCU - Pocket Jaw Rotation Kit contains the parts necessary to rotate the pocket jaws 90 degrees. After rotating the specimens, the face of the specimen will now be parallel to the vacuum tank doors. When used with standard grips devices such as DIC cameras, optical micrometers, pyrometers, or lasers will have a direct line of sight to the flat plane of the specimen. Viewing angles can be from either the front or back door vacuum tank windows.

Part Number Description Sold As
37500 General-Purpose MCU - Pocket Jaw Rotation Kit Ea.

Low-Force Pocket Jaw Rotation Kit

_images/9510-005.png

Fig. 32.4 Low-Force Pocket Jaws Rotation Kit - DSI# 9510-005.

The 9510-005 Low-Force Pocket Jaws Rotation Kit contains the parts necessary to rotate the pocket jaws 90 degrees. Specimens will now be mounted parallel to the vacuum tank doors. When used with standard grips devices such as DIC cameras, optical micrometers, pyrometers, or lasers will have a direct line of sight to the flat plane of the specimen. Viewing angles can be from either the front or back door vacuum tank windows.

Part Number Description Sold As
9510-005 Low-Force Pocket Jaws - Jaw Rotation Kit Ea.

32.4. Heating Modification for a Highly Conductive Specimen

To successfully heat aluminum, copper, or other highly conductive materials, additional grounding modifications must be added to the General-Purpose MCU.

Part Number Description Sold As
35220 Heating Modification for a Highly Conductive Specimen Ea.

32.5. Measurement Gauge Parts and Accessories

32.5.1. Measurement Gauge Quartz Rods

_images/G417B.png

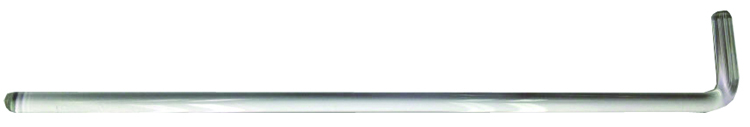

Fig. 32.5 L-Shaped Quartz Rod - DSI# G417B.

Part Number Description Sold As
G417B 39010 C-Strain and 39060 L-Strain - L-Shaped Quartz Rod - 5 mm dia Ea.
9655-805 39018 Dilatometer - L-Shaped Quartz Rod - 5 mm dia Ea.
_images/G417C.png

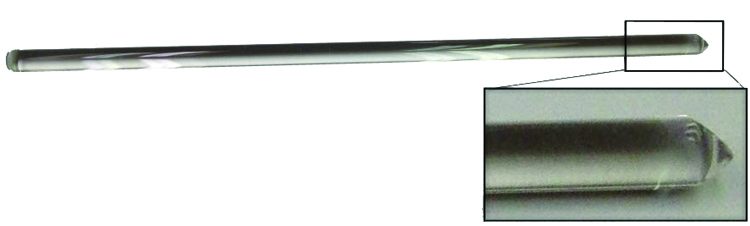

Fig. 32.6 Straight Chisel-Point Quartz Rod - DSI# G417C.

Part Number Description Sold As
G417C 39010 C-Strain - Straight Chisel-Point Quartz Rod - 5 mm dia Ea.
9655-804 39018 Dilatometer - Straight Chisel-Point Quartz Rod - 5 mm dia Ea.

32.5.2. Measurement Gauge Universal Accessories

_images/9655-100.png

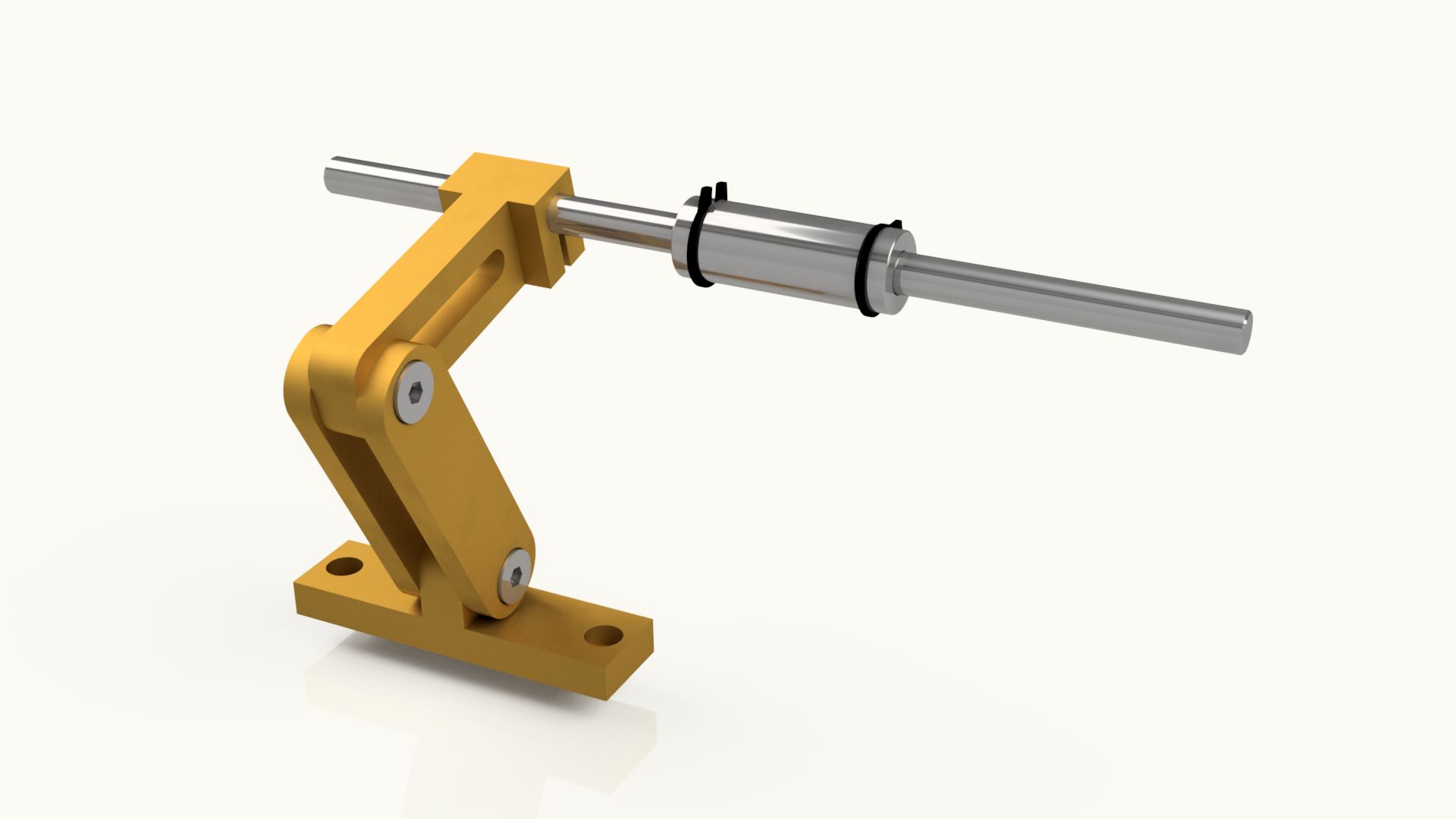

Fig. 32.7 Universal Extensometer Mount - DSI# 9655-100.

Part Number Description Sold As
9655-100 Universal Extensometer Mount - Mounting Hardware Not Included Ea.
Mounting Hardware - 3800, 3500 or 3180
34658 Pocket Jaw Mounting Arm for 9655-100 Ea.
HE306 Thumb Screw for installing 34658 - 10-32 x 1/2 in Ea.
GA00412M Rubber Band Mounting Rod Ea.
G412L Rubber Band for Extensometer Ea.
Mounting Hardware - 563 or 540
M3S108 Mounting Screws for 9655-100 M3 x .5 x 6 mm Ea.

32.5.3. Measurement Transducer Parts

Part Number Description Sold As
Used with 39053 and 39010
SC0250A Replacement 39053 High-Resolution L- Strain and 39010 C-Strain Transducer Core - Core Only Ea.
32398 Replacement transducer assembly for 39053 High-Resolution L-Strain and 39010 C-Strain - includes transducer and core Ea.
Used With 39050
GA000192 Replacement Transducer assembly - 39050 includes transducer and core Ea.
SC0500 Standard 500 MHR Transducer - 39050 - includes transducer and SC0500A transducer core Ea.
SC0500A Replacement 39050 Transducer Core - core only Ea.
SC0500B Replacement 39050 Transducer Core with Insulated Extension Rod Ea.

32.5.4. Hot Zone L-Strain Consumable Parts

Part Number Description Parts Per Set Sold As
Used with 39071
9660-851 Alumina Rod, Chisel-Point End - 0.188 in dia 2 Set
9660-852 Alumina Rod, Inverted Chisel-Point End - 0.138 in dia 2 Set
9660-850 Alumina Rod, Chisel-Point End - 0.138 in dia 2 Set
GAUGE001 Ceramic Fiber Cord - 6 in 2 Set
Used with 39070, 39071 & 39072
9660-853 Alumina Rod, Chisel-Point End - 0.188 in dia 2 Set
GAUGE003 Ceramic Fiber Cord - 10 in 8 Set
GAUGE002 Spring Tabs for Ceramic Fiber Cords 2 Set

32.6. Specimen Loading Tools

32.6.1. Manual Specimen Loaders

Uniaxial Compression - Pocket Jaws

_images/9520-115.png

Fig. 32.8 Manual Specimen Loading Tool - DSI# 9555-104.

Part Number Description Sold As
9555-104 Manual Specimen Loading Tool - Included in 9555-100 Uniaxial Compression Kit Ea.

Plane Strain Compression - Pocket Jaws

_images/9520-115.png

Fig. 32.9 Manual Specimen Loading Tool - DSI# 9560-109.

Part Number Description Sold As
9560-109 Manual Specimen Loading Tool - Included in 9560-001 Plane Strain Compression Kit Ea.

Compression Test Adapter

_images/9520-115.png

Fig. 32.10 Manual Specimen Loading Tool - DSI# 9520-115.

Part Number Description Sold As
9520-115 Manual Specimen Loading Tool Ea.

32.6.2. Automatic Specimen Loader

_images/32782.png

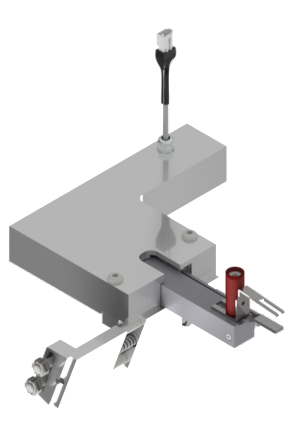

Fig. 32.11 Specimen Auto-Loader Assembly - DSI# 32782.

Part Number Description Sold As
32782 Specimen Auto-Loader Assembly Ea.

32.6.3. Plane Strain Specimen Loading Clips

_images/33781.png

Fig. 32.12 Specimen Loading Clip - DSI# 33781.

Part Number Description Sold As
33781 Specimen Loading Clip for Plane Strain Specimens - 20 mm x 25 mm x 35 mm Ea.
_images/33785.png

Fig. 32.13 Specimen Loading Clip - DSI# 33785.

Part Number Description Sold As
33785 Specimen Loading Clip for Plane Strain Specimens - 15 mm x 20 mm x 35 mm Ea.
_images/33780.png

Fig. 32.14 Specimen Loading Clip - DSI# 33780.

Part Number Description Sold As
33780 Specimen Loading Clip for Plane Strain Specimens - 10 mm x 15 mm x 20 mm Ea.

32.6.4. Uniaxial Compression Specimen Loading Clips

_images/33783.png

Fig. 32.15 Specimen Loading Clip - DSI# 33783.

Part Number Description Sold As
33783 Specimen Loading Clip for Uniaxial Compression Specimens with C-Strain Dilatometer - 10 mm dia x 15 mm long Ea.
_images/33782.png

Fig. 32.16 Specimen Loading Clip - DSI# 33782.

Part Number Description Sold As
33782 Specimen Loading Clip for Uniaxial Compression Specimens - 10 mm dia x 15 mm long Ea.
_images/33795.png

Fig. 32.17 Specimen Loading Clip - DSI# 33795.

Part Number Description Sold As
33795 Specimen Loading Clip for Uniaxial Compression Specimens - 8 mm dia x 10 mm long Ea.

_images/33797.png

Fig. 32.18 Specimen Loading Clip - DSI# 33797.

Part Number Description Sold As
33797 Specimen Loading Clip for Uniaxial Compression Specimens with C-Strain Dilatometer - 6 mm dia x 9 mm long Ea.
_images/33796.png

Fig. 32.19 Specimen Loading Clip - DSI# 33796.

Part Number Description Sold As
33796 Specimen Loading Clip for Uniaxial Compression Specimens - 6 mm dia x 9 mm long Ea.

32.7. Mobile Conversion Units - Replacement Parts

32.7.1. O-Ring Sets

Part Number Description Sold As
OR007 Replacement O-Ring Set - General-Purpose MCU and Hydrawedge I Vacuum Tank Kit
OR010 Replacement O-Ring Set - Hydrawedge II Vacuum Tank Kit
OR011 Replacement O-Ring Set - MAXStrain I Vacuum Tank Kit
OR014 Replacement O-Ring Set - Torsion Vacuum Tank Kit
OR015 Replacement O-Ring Set - MAXStrain II Vacuum Tank Kit
OR019 Replacement O-Ring Set - 3180 Vacuum Tank Kit

32.7.2. Vacuum Tank Door Piston - Replacement Parts

_images/gas_piston.PNG

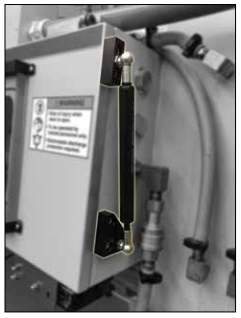

Fig. 32.20 Vacuum Tank Gas Piston

Every Gleeble system (or each MCU supplied) includes at least one vacuum tank door piston. The size of the vacuum tank piston will vary depending on the type of Gleeble System or MCU. New designs have been introduced, improving performance and ease of use. These new designs are included in the model numbers below:

Model 32752: A new design with improved damping and longer durability, these replace the existing door springs on the following vacuum tanks: General Purpose MCU, Hydrawedge MCU, MAXStrain MCU, and 3180. Must have new spring mounts. (See 32753 and 32754 for upgrade kits)

Model 32753: Upgrade Kit for Damped Vacuum Tank Front Door Spring: Kit includes one (1) spring with mounts for the vacuum tank front door on the following vacuum tanks: General Purpose MCU, Hydrawedge MCU, MAXStrain MCU, and 3180.

Model 32754: Upgrade Kit for Damped Vacuum Tank Back Door Spring: Kit includes one (1) spring with mounts for the vacuum tank back door on the following vacuum tanks: General Purpose MCU, Hydrawedge MCU, and 3180. (Not applicable on MAXStrain MCU)

Part Number Description Sold As
32752 Replacement Damped Vacuum Tank Door Spring Ea.
32753 Upgrade Kit for Damped Vacuum Tank Front Door Spring Assembly Kit
32754 Upgrade Kit for Damped Vacuum Tank Back Door Spring Assembly Kit

32.8. Chilled Process Fluid Systems - Replacement Parts

Part Number Description Sold As
31622 Load Unit Water Distribution Manifold Ea.
31604 Load Unit Air and Water Manifold - 3180, 3500, 3800 Ea.
31620 Water Flow Switch/Load Unit Water Distribution Manifold - All Systems Ea.
31615 2 GPM Flow Meter Circuit - Load Unit Water Distribution Manifold - All Systems Ea.
31616 Grounded 2 GPM Flow Meter Circuit - Load Unit Water Distribution Manifold - All Systems Ea.
31617 5 GPM Flow Meter Circuit - Load Unit Water Distribution Manifold - All Systems Ea.
31621 Water Flow Valve for Load Unit - 3180, 3500, 3800 Kit
31612 Load Unit Column End Plumbing - 3500 and 3800 with MCUs Kit

32.9. Hydraulic Systems - Replacement Parts

_images/acm9979f.png

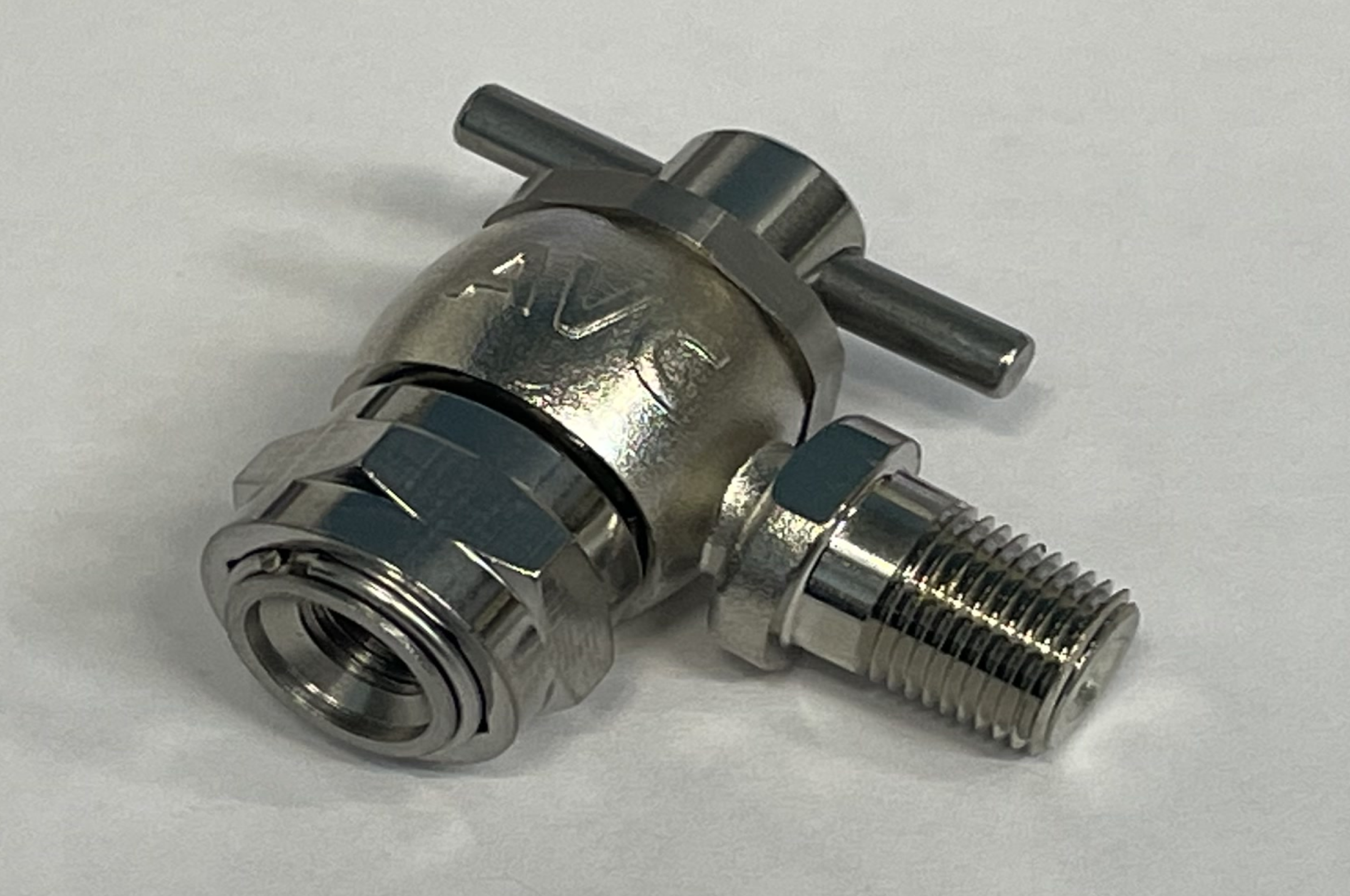

Fig. 32.21 Schrader Valve Fill Connector - DSI# ACM9979F

_images/acm9982c.png

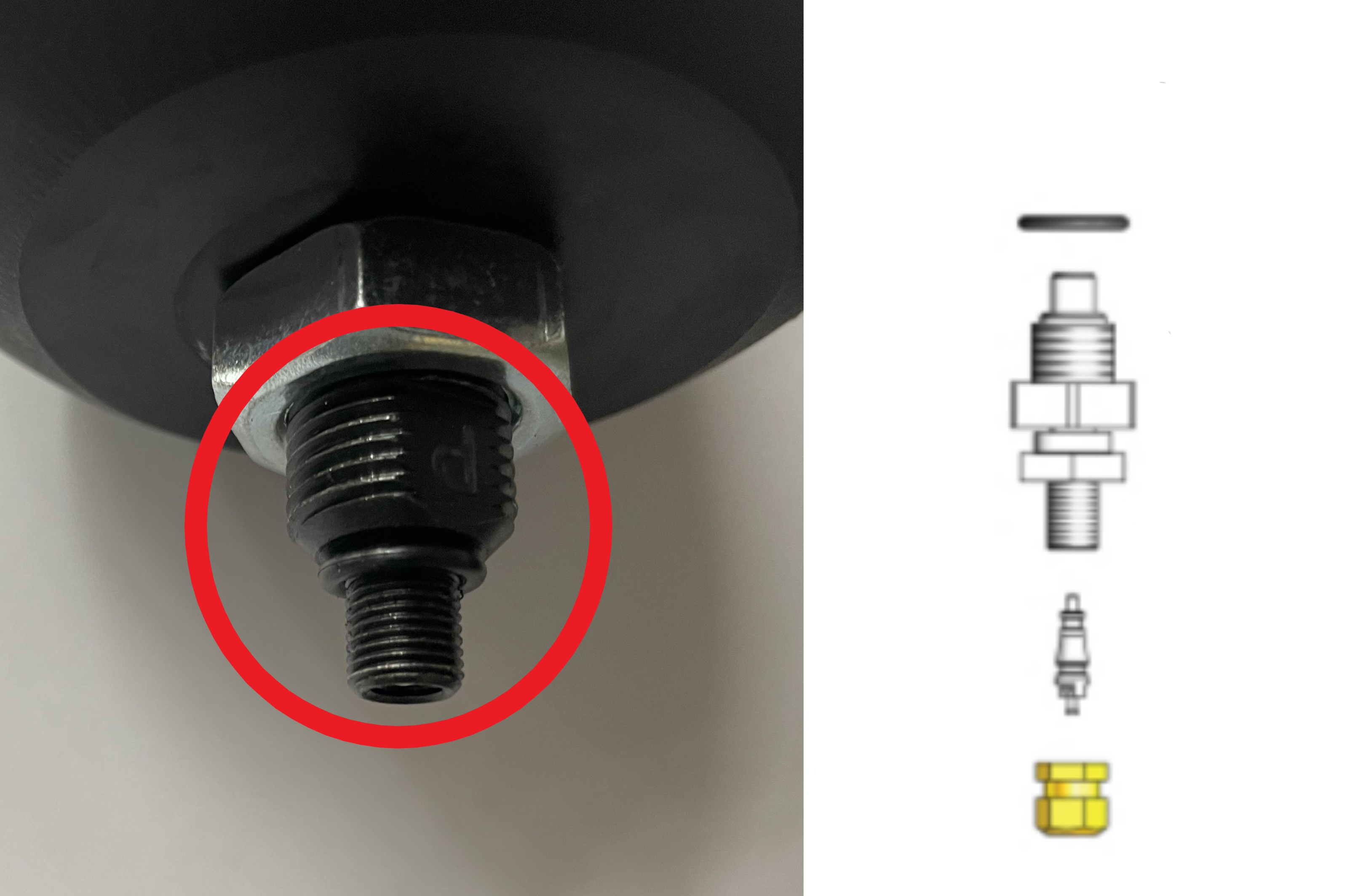

Fig. 32.22 Schrader Valve Assembly for Parker Accumulators - DSI# ACM9982C


Part Number Description Sold As
35333 3500 Dual Hydraulic Valve System Upgrade Ea.
35334 3800 Dual Hydraulic Valve System Upgrade Ea.
35341 3500 Dual Hydraulic Valve System Upgrade - For machines with existing dual valve upper hydraulic blocks Ea.
35342 3800 Dual Hydraulic Valve System Upgrade - For machines with existing dual valve upper hydraulic blocks Ea.
GAUGE004 Gleeble Branded Oil Pressure Gauge - Load Unit and MCU Ea.
ACM0004S 1 Pint Pilot Accumulator - 3180 Ea.
32496 1 Pint Pilot Accumulator - Hydrawedge I MCU Pilot Accumulator Ea.
ACM0025S 1 Quart Pilot Accumulator - All 3500 & 3800 Load Units, Hydrawedge II MCU, MAXStrain I & II MCU Ea.
ACM0100S 1 Gal Accumulator - 3180 Ea.
ACM0250F 2.5 Gallon Accumulator - Split Flange Mount - 60 GPM - 3500 Load Unit - Serial # 304 - 329 Ea.
ACM0250S 2.5 Gallon Accumulator - SAE Thread Mount - 60 GPM - 3500 Load Unit - Serial # 304 - 329 Ea.
ACM0500F 5 Gallon Accumulator - Split Flange Mount - 100 GPM - 3500 & All 3800 Load Units, Hydrawedge II MCU, MAXStrain I & II MCU - Serial # 330 - Present Ea.
ACM0500S 5 Gallon Accumulator - SAE Thread Mount - 100 GPM - 3500 & All 3800 Load Units, Hydrawedge II MCU, MAXStrain I & II MCU - Serial # 330 - Present Ea.
ACM9982C Schrader Valve Assembly for Parker Accumulators - All sizes Ea.
ACM9979F Schrader Valve Fill Connector for all Accumulator Charging Kits Ea.
ACM99### Accumulator Charging Kits (Country Specific - See below) Ea.
  • ACM9990A - South Africa
  • ACM9991A - Brazil
  • ACM9992A - Argentina, Australia, India
  • ACM9993A - Belgium, France, Slovenia, Spain
  • ACM9994A - Germany, Austria, Holland
  • ACM9995A - Italy
  • ACM9984A - South Korea
  • ACM9985A - China
  • ACM9986A - Taiwan
  • ACM9987A - Japan
  • ACM9988A - Russia, Venezuela
  • ACM9989A - United States, Canada

Note

If your country is not listed above, please contact DSI for assistance.
