3. Gleeble Touch Control

3.1. The Next Generation of Gleeble Systems Control

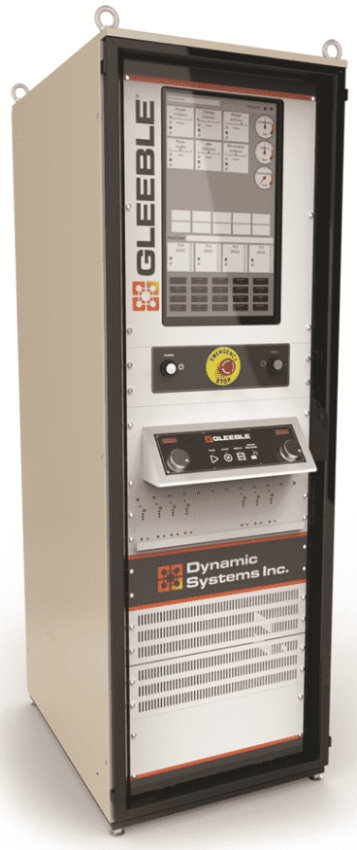

_images/GTC_Console.png

Fig. 3.1 Gleeble GTC

The Gleeble Touch Control (GTC) is a significant system upgrade to the Gleeble 3000 Series. The new GTC is now shipping with new Gleeble systems and is available as an upgrade to most existing Gleeble 3500 and 3800 systems.

Designed with ease of use in mind, the design team listened to user feedback to develop a more intuitive user interface. Integrating updated hardware and software, the GTC includes a range of enhancements, including improved usability and performance.

3.1.1. Improved Usability

Many design features have been incorporated into the GTC:

  • Configurable touch screen display
  • Large screen and clear icons improve usability for Gleeble operators
  • Two display modes: Configuration Mode and Run Mode simplify usability and provide the right data and controls at the right time
  • Redesigned Virtual Panel Meters (VPMs) provide clear and organized information at a glance
  • During testing, users are presented with real-time data as well as operating ranges
  • Absolute and relative transducer status and values are clearly displayed
  • New Real Time Graph feature can display multiple user-selected variables graphically as the test progresses, making it easier for the user to know if the test is running as intended
  • Faster user training - current and new Gleeble users will quickly and easily learn how to use the system

3.1.2. Improved Performance

Performance-enhancing features of the GTC include:

  • New Instrument Modules (IMs) provide improved control & data acquisition
  • Easier PID tuning and customization for control signals including Stroke, Thermal, or Strain control
  • Expandability – the modular control system is designed with integrated future expansion capabilities
  • Reduced User Error – improved data presentation via new Virtual Panel Meters provides for a more intuitive display of information, allowing the user to review performance data at a glance
  • Improved user experience and accelerated work flow result in increased productivity and throughput
  • Improved system diagnostics and error-logging process enable enhanced service
  • Better access to data files – data files are stored in standard Windows® folders for more convenient access and backup
Part Number Description Sold As
32627-Console Gleeble Touch Control (GTC) Upgrade Ea.
