13. Gleeble Grips¶
13.1. What Are Gleeble Grips?¶
Grips are used to “clamp” specimens while testing. There are many different sizes, materials, and geometries of grips to allow for a wide array of applications. Grips are typically characterized by a few parameters; material, size, geometry, and contact area. For more information about the effects of Gleeble Grips and Specimen geometry on the heating characteristics of a test reference the Grips Section of the Gleeble General Testing Guide.
13.1.1. Grip Selection¶
Selecting the best grips for a particular application is important for good testing in the Gleeble. There are a number of factors that go into grip selection, careful consideration should go into grip selection for each new application in the machine.
Material
The material of the grips can change the heating and cooling characteristics of the specimen. It also has an effect on the thermal gradient of the specimen. DSI offers Copper and Stainless Steel Grips.
Copper grips have a very high thermal conductivity which allows them to cool the specimen down much faster than Stainless steel due to their ability to transfer heat from the liquid cooled wear plate to the specimen faster than stainless steel grips. Consider using copper grips for applications which require fast cooling rates. Another consideration is the electrical conductivity of the grips. Copper has a much higher electrical conductivity than Stainless Steel and this can allow for faster heating rates. However, copper grips can cause the thermal gradient to be very steep (narrow hot zone). This is desirable in some applications, such as hot ductility, welding, and casting, however other applications may require a more isothermal gradient.
Due to the lower electrical conductivity of Stainless steel, the grips themselves become hotter during the test, which makes the specimen more isothermal. Another way to make the specimen more isothermal is to use partial contact or hot grips. The small contact area on the specimen not only increases the electrical resistance, but also reduces the thermal sink. For the most uniform hot zone, consider using Stainless Steel Hot Grips.
Specimen Size
The size of the grips should be selected to match the size of the specimen. For the best performance the tolerance between the size of the specimen and the corresponding surfaces of the grips must be minimized.
Geometry
The geometry of the grips must match the geometry of the specimen. At the specimen to grip interface a round grip must be used to retain a round specimen. Square grips can be used to retain a square specimen. Flat grips are used for flat specimens.
Contact Area
Some grips have less contact area than other to change the heating characteristics.
Full Contact:
Full Contact grips provide the largest interface surface area between the specimen and the grips. A Full Contact grip will utilized the entire length of the grip to contact the specimen. These grips provide the most efficient heating and cooling rates possible.
Partial Contact:
Partial Contact grips provide approximately half the contact area when compared to a Full Contact grip. By reducing the contact area between the grips and the specimen the specimen experiences a greater electrical resistance. The increased resistance results in a larger uniform hot zone on the specimen.
Hot Grips:
Hot Grips provide the smallest possible contact area between the grips and the specimen. With a minimal contact surface, and maximum electrical resistance, Hot Grips create the largest uniform hot zone of any Gleeble grips.
13.2. 3000 Series¶
Designed to specifically fit a Gleeble 3500, 3800, and 3180; 3000 Series Grips build off nearly a century of design, research, and study. This ensures continued accuracy and consistency of testing.
13.2.1. Copper Grips¶
Copper grips have a very high thermal and electrical conductivity. This allows them to cool the specimen down much faster than Stainless Steel. Due to Copper’s ability to transfer heat from the specimen to the liquid cooled wear plate faster than Stainless Steel grips consider using copper grips for applications which require fast cooling rates.
Another consideration in using Copper grips is the electrical conductivity of the material. Copper has a much higher electrical conductivity than Stainless Steel. This can allow for faster heating rates. However, copper grips can cause the thermal gradient to be very steep (narrow hot zone). This is desirable in some applications, such as hot ductility, welding, and casting, however other applications may require a more isothermal gradient.
13.2.1.1. Round¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a round grip contact area must be tested using Round Grips.
Full Contact Copper - Round

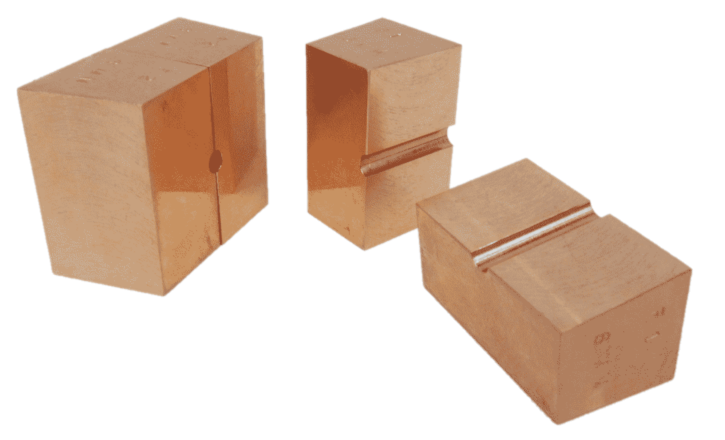

Fig. 13.1 Full Contact Copper Round Grips.
| Metric Full Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9000-060 | 6 mm | Set |
| 9000-080 | 8 mm | Set |
| 9000-100 | 10 mm | Set |
| 9000-120 | 12 mm | Set |
| 9000-140 | 14 mm | Set |
| 9000-160 | 16 mm | Set |
| 9000-200 | 20 mm | Set |
| Imperial Full Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9001-040 | 1/4 in | Set |
| 9001-050 | 5/16 in | Set |
| 9001-060 | 3/8 in | Set |
| 9001-070 | 7/16 in | Set |
| 9001-080 | 1/2 in | Set |
| 9001-090 | 9/16 in | Set |
| 9001-100 | 5/8 in | Set |
| 9001-120 | 3/4 in | Set |
Partial Contact Copper - Round

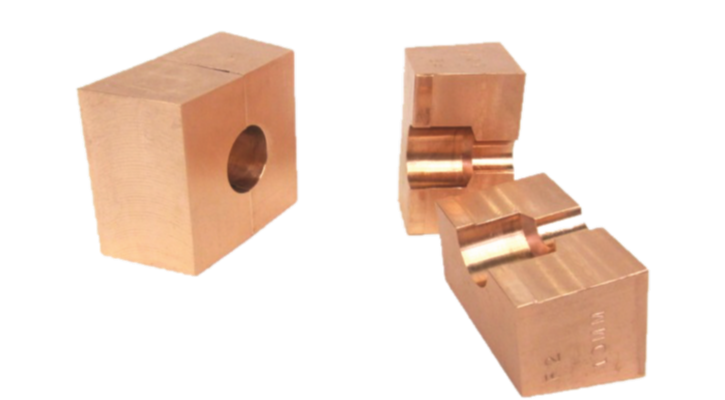

Fig. 13.2 Partial Contact Copper Round Grips.
| Metric Partial Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9050-045 | 4.5 mm | Set |
| 9050-060 | 6 mm | Set |
| 9050-080 | 8 mm | Set |
| 9050-100 | 10 mm | Set |
| 9050-120 | 12 mm | Set |
| 9050-140 | 14 mm | Set |
13.2.1.2. Square¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a square grip contact area must be tested using Square Grips.
Full Contact Copper - Square

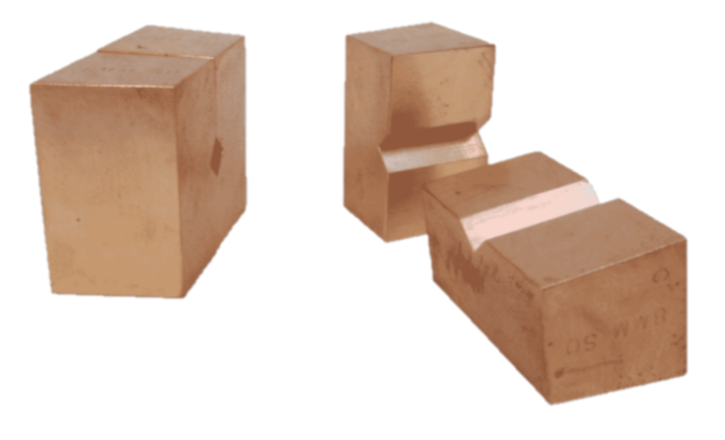

Fig. 13.3 Partial Contact Copper Round Grips.
| Metric Full Contact Copper Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9002-040 | 4 mm | Set |
| 9002-060 | 6 mm | Set |
| 9002-080 | 8 mm | Set |
| 9002-100 | 10 mm | Set |
| 9002-110 | 11 mm | Set |
| 9002-120 | 12 mm | Set |
| 9002-140 | 14 mm | Set |
| 9002-160 | 16 mm | Set |
| 9002-200 | 20 mm | Set |
| Imperial Full Contact Copper Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9003-040 | 1/4 in | Set |
| 9003-050 | 5/16 in | Set |
| 9003-060 | 3/8 in | Set |
| 9003-070 | 7/16 in | Set |
| 9003-080 | 1/2 in | Set |
| 9003-090 | 9/16 in | Set |
| 9003-100 | 5/8 in | Set |
| 9003-120 | 3/4 in | Set |
13.2.1.3. Flat¶
Flat grips are used to secure flat, sheet, or strip specimens within the Gleeble system. These grips use a pin to retain the specimen between the grips, enabling tension forces to be applied to the specimen during testing.
|
|
|
| Grips with a 5mm Spring Pin are used for forces up to 18 kN in tension. | Grips with a 3/16 inch Tension Pin are used for forces up to 17 kN in tension. | Grips with a 10 mm Tension Pin are used for all other tests. |
Full Contact Copper - Flat - 5 mm Spring Pin
Fig. 13.4 Full Contact Copper Flat Grips with 5 mm Spring Pin.
| Metric Full Contact Copper Flat Grips 5 mm Spring Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9006-000 | 0.00 mm - 1.25 mm | Set |
| 9006-010 | 1.00 mm - 2.25 mm | Set |
| 9006-020 | 2.00 mm - 3.25 mm | Set |
| 9006-030 | 3.00 mm - 4.25 mm | Set |
| 9006-040 | 4.00 mm - 5.25 mm | Set |
| 9006-050 | 5.00 mm - 6.25 mm | Set |
| 9006-060 | 6.00 mm - 7.25 mm | Set |
| 9006-070 | 7.00 mm - 8.25 mm | Set |
| 9006-080 | 8.00 mm - 9.25 mm | Set |
| 9006-090 | 9.00 mm - 10.25 mm | Set |
| 9006-100 | 10.00 mm - 11.25 mm | Set |
| 9006-110 | 11.00 mm - 12.25 mm | Set |
| 9006-120 | 12.00 mm - 13.25 mm | Set |
Full Contact Copper - Flat - 10 mm Tension Pin
| Metric Full Contact Copper Flat Grips 10 mm Tension Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9006-500 | 0.00 mm - 1.25 mm | Set |
| 9006-510 | 1.00 mm - 2.25 mm | Set |
| 9006-520 | 2.00 mm - 3.25 mm | Set |
| 9006-530 | 3.00 mm - 4.25 mm | Set |
| 9006-540 | 4.00 mm - 5.25 mm | Set |
| 9006-550 | 5.00 mm - 6.25 mm | Set |
| 9006-560 | 6.00 mm - 7.25 mm | Set |
| 9006-570 | 7.00 mm - 8.25 mm | Set |
| 9006-580 | 8.00 mm - 9.25 mm | Set |
| 9006-590 | 9.00 mm - 10.25 mm | Set |
| 9006-600 | 10.00 mm - 11.25 mm | Set |
| 9006-610 | 11.00 mm - 12.25 mm | Set |
| 9006-620 | 12.00 mm - 13.25 mm | Set |
13.2.2. Stainless Steel Grips¶
Due to the lower electrical conductivity of Stainless steel, the grips themselves become hotter during the test, which makes the specimen more isothermal. Another way to make the specimen more isothermal is to use partial contact or hot grips. The small contact area on the specimen not only increases the electrical resistance, but also reduces the thermal sink. For the most uniform hot zone, consider using Stainless Steel Hot Grips.
13.2.2.1. Round¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a round grip contact area must be tested using Round Grips.
Full Contact Stainless Steel - Round

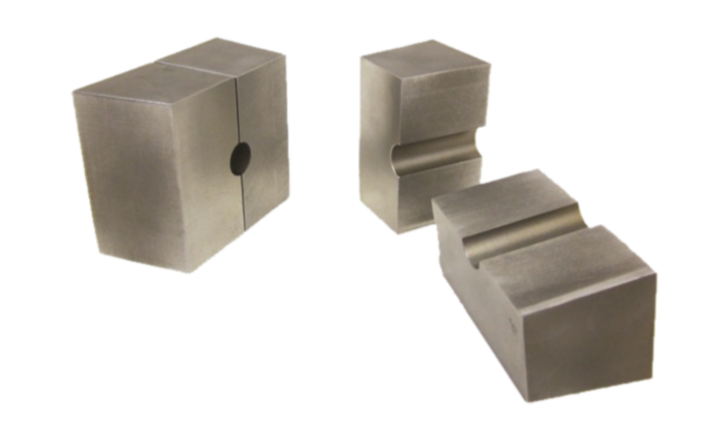

Fig. 13.5 Full Contact Stainless Steel Round Grips.
| Metric Full Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9065-060 | 6 mm | Set |
| 9065-080 | 8 mm | Set |
| 9065-100 | 10 mm | Set |
| 9065-110 | 11 mm | Set |
| 9065-120 | 12 mm | Set |
| 9065-140 | 14 mm | Set |
| 9065-160 | 16 mm | Set |
| 9065-200 | 20 mm | Set |
| Imperial Full Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9066-040 | 1/4 in | Set |
| 9066-050 | 5/16 in | Set |
| 9066-060 | 3/8 in | Set |
| 9066-070 | 7/16 in | Set |
| 9066-080 | 1/2 in | Set |
| 9066-090 | 9/16 in | Set |
| 9066-100 | 5/8 in | Set |
| 9066-120 | 3/4 in | Set |
| 9066-160 | 1.0 in | Set |
Partial Contact Stainless Steel - Round

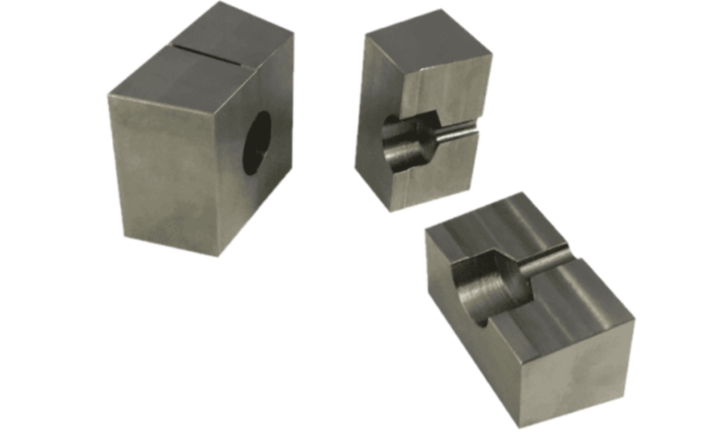

Fig. 13.6 Partial Contact Stainless Steel Round Grips.
| Metric Partial Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9060-100 | 10 mm | Set |
| 9060-200 | 20 mm | Set |
Hot Grips Stainless Steel - Round

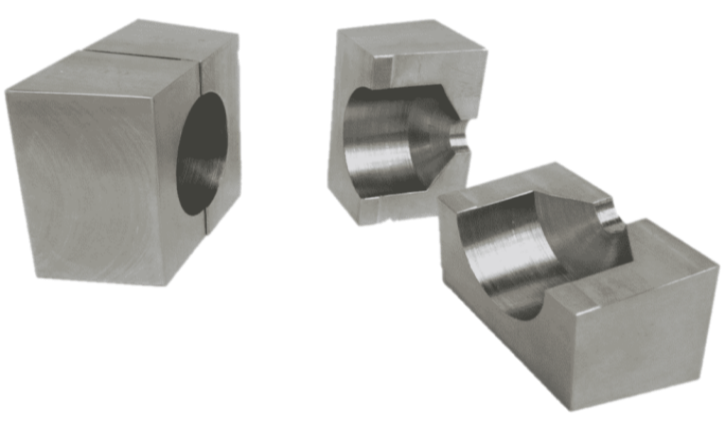

Fig. 13.7 Hot Grip Stainless Steel Round Grips.
| Metric Hot Grip Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9010-040 | 4 mm | Set |
| 9010-060 | 6 mm | Set |
| 9010-080 | 8 mm | Set |
| 9010-100 | 10 mm | Set |
| 9010-110 | 11 mm | Set |
| 9010-120 | 12 mm | Set |
| 9010-140 | 14 mm | Set |
| 9010-160 | 16 mm | Set |
| 9010-200 | 20 mm | Set |
| Imperial Hot Grip Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9011-040 | 1/4 in | Set |
| 9011-050 | 5/16 in | Set |
| 9011-060 | 3/8 in | Set |
| 9011-070 | 7/16 in | Set |
| 9011-080 | 1/2 in | Set |
| 9011-090 | 9/16 in | Set |
| 9011-100 | 5/8 in | Set |
| 9011-120 | 3/4 in | Set |
13.2.2.2. Square¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a square grip contact area must be tested using Square Grips.
Full Contact Stainless Steel - Square

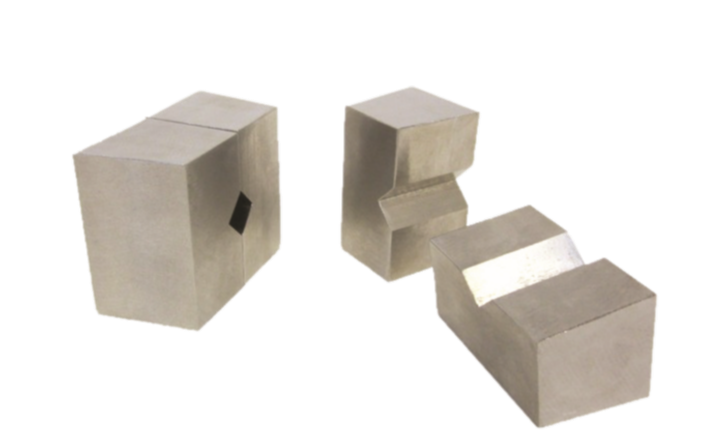

Fig. 13.8 Full Contact Stainless Steel Round Grips.
| Metric Full Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9067-100 | 10 mm | Set |
| 9067-110 | 11 mm | Set |
Partial Contact Stainless Steel - Square

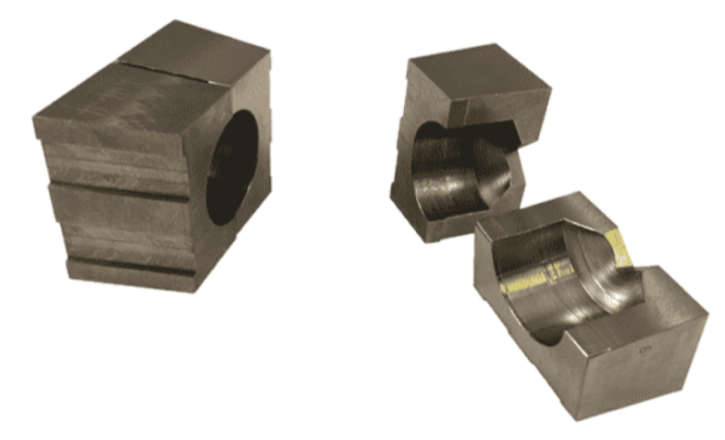

Fig. 13.9 Partial Contact Stainless Steel Square Grips.
| Metric Partial Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9012-060 | 6 mm | Set |
| 9012-080 | 8 mm | Set |
| 9012-100 | 10 mm | Set |
| 9012-120 | 12 mm | Set |
| 9012-140 | 14 mm | Set |
| 9012-160 | 16 mm | Set |
| 9012-200 | 20 mm | Set |
| Imperial Partial Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9013-040 | 1/4 in | Set |
| 9013-050 | 5/16 in | Set |
| 9013-060 | 3/8 in | Set |
| 9013-070 | 7/16 in | Set |
| 9013-080 | 1/2 in | Set |
| 9013-090 | 9/16 in | Set |
| 9013-100 | 5/8 in | Set |
| 9013-120 | 3/4 in | Set |
13.2.2.3. Flat¶
Flat grips are used to secure flat, sheet, or strip specimens within the Gleeble system. These grips use a pin to retain the specimen between the grips, enabling tension forces to be applied to the specimen during testing.
|
|
|
|
| Grips with a 5mm Spring Pin are used for forces up to 18 kN in tension. | Grips with a 3/16 inch Tension Pin are used for forces up to 17 kN in tension. | Grips with a 10 mm Tension Pin are used for all other tests. |
Full Contact Stainless Steel - Flat - 5 mm Spring Pin

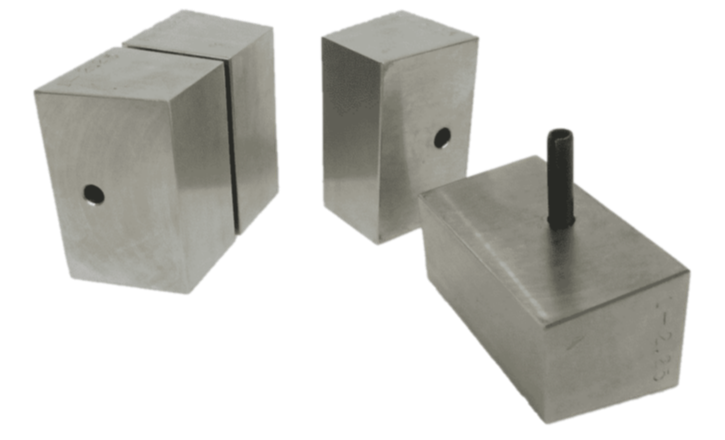

Fig. 13.10 Full Contact Stainless Steel Flat Grips with 5 mm Spring Pin.
| Metric Full Contact Stainless Steel Flat Grips 5 mm Spring Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9007-000 | 0.00 mm - 1.25 mm | Set |
| 9007-010 | 1.00 mm - 2.25 mm | Set |
| 9007-020 | 2.00 mm - 3.25 mm | Set |
| 9007-030 | 3.00 mm - 4.25 mm | Set |
| 9007-040 | 4.00 mm - 5.25 mm | Set |
| 9007-050 | 5.00 mm - 6.25 mm | Set |
| 9007-060 | 6.00 mm - 7.25 mm | Set |
| 9007-070 | 7.00 mm - 8.25 mm | Set |
| 9007-080 | 8.00 mm - 9.25 mm | Set |
| 9007-090 | 9.00 mm - 10.25 mm | Set |
| 9007-100 | 10.00 mm - 11.25 mm | Set |
| 9007-110 | 11.00 mm - 12.25 mm | Set |
| 9007-120 | 12.00 mm - 13.25 mm | Set |
Full Contact Stainless Steel - Flat - 10 mm Tension Pin
| Metric Full Contact Stainless Steel Flat Grips 10 mm Tension Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9007-500 | 0.00 mm - 1.25 mm | Set |
| 9007-510 | 1.00 mm - 2.25 mm | Set |
| 9007-520 | 2.00 mm - 3.25 mm | Set |
| 9007-530 | 3.00 mm - 4.25 mm | Set |
| 9007-540 | 4.00 mm - 5.25 mm | Set |
| 9007-550 | 5.00 mm - 6.25 mm | Set |
| 9007-560 | 6.00 mm - 7.25 mm | Set |
| 9007-570 | 7.00 mm - 8.25 mm | Set |
| 9007-580 | 8.00 mm - 9.25 mm | Set |
| 9007-590 | 9.00 mm - 10.25 mm | Set |
| 9007-600 | 10.00 mm - 11.25 mm | Set |
| 9007-610 | 11.00 mm - 12.25 mm | Set |
| 9007-620 | 12.00 mm - 13.25 mm | Set |
Partial Contact Stainless Steel - Flat - 5 mm Spring Pin

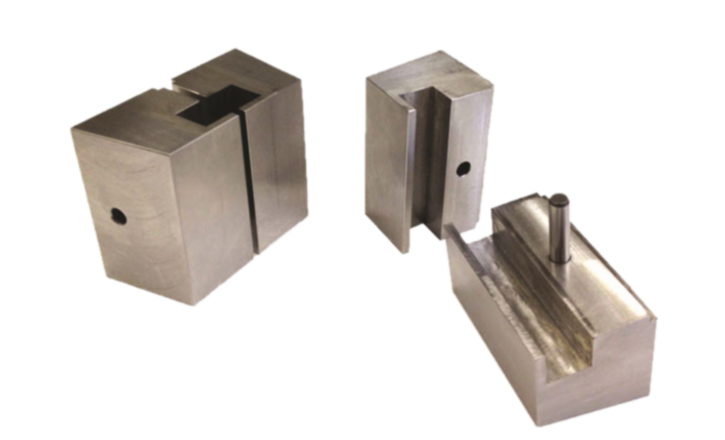

Fig. 13.11 Partial Contact Stainless Steel Flat Grips with 5 mm Spring Pin.
| Metric Partial Contact Stainless Steel Flat Grips 5 mm Spring Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9017-000 | 0.00 mm - 1.25 mm | Set |
| 9017-010 | 1.00 mm - 2.25 mm | Set |
| 9017-020 | 2.00 mm - 3.25 mm | Set |
| 9017-030 | 3.00 mm - 4.25 mm | Set |
| 9017-040 | 4.00 mm - 5.25 mm | Set |
| 9017-050 | 5.00 mm - 6.25 mm | Set |
| 9017-060 | 6.00 mm - 7.25 mm | Set |
| 9017-070 | 7.00 mm - 8.25 mm | Set |
| 9017-080 | 8.00 mm - 9.25 mm | Set |
| 9017-090 | 9.00 mm - 10.25 mm | Set |
| 9017-100 | 10.00 mm - 11.25 mm | Set |
| 9017-110 | 11.00 mm - 12.25 mm | Set |
| 9017-120 | 12.00 mm - 13.25 mm | Set |
Hot Grips Stainless Steel - Flat

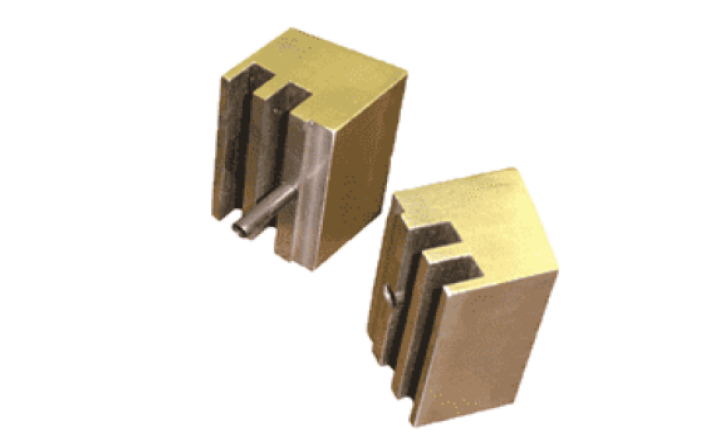

Fig. 13.12 Hot Grip Stainless Steel Flat Grips with 5 mm Spring Pin.
| Metric Hot Grip Stainless Steel Flat Grips 5 mm Spring Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9016-000 | 0.00 mm - 1.25 mm | Set |
| 9016-010 | 1.00 mm - 2.25 mm | Set |
| 9016-020 | 2.00 mm - 3.25 mm | Set |
| 9016-030 | 3.00 mm - 4.25 mm | Set |
| 9016-040 | 4.00 mm - 5.25 mm | Set |
| 9016-050 | 5.00 mm - 6.25 mm | Set |
| 9016-060 | 6.00 mm - 7.25 mm | Set |
| 9016-070 | 7.00 mm - 8.25 mm | Set |
| 9016-080 | 8.00 mm - 9.25 mm | Set |
| 9016-090 | 9.00 mm - 10.25 mm | Set |
| 9016-100 | 10.00 mm - 11.25 mm | Set |
| 9016-110 | 11.00 mm - 12.25 mm | Set |
| 9016-120 | 12.00 mm - 13.25 mm | Set |
13.2.3. Backing Nuts¶
To best secure a specimen in the Gleeble Pocket Jaws for tension and basic compression tests, Backing Nuts are used. Threaded onto the ends of the specimen these Nuts provide safe and secure tension within the Grips and Jaw assemblies. Backing Nuts are threaded for round samples with a specified thread diameter and pitch.

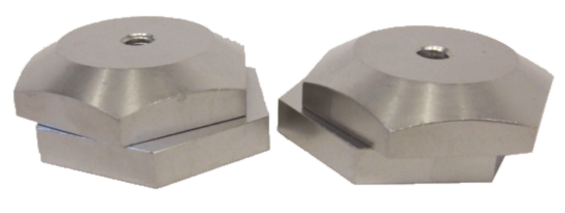

Fig. 13.13 Backing Nuts.
| Metric Backing Nuts | ||
|---|---|---|
| Part Number | Description | Sold As |
| 9020-060 | 6 mm dia (thread size: 6 mm x 1.0) | Set of 4 |
| 9020-080 | 8 mm dia (thread size: 8 mm x 1.25) | Set of 4 |
| 9020-100 | 10 mm dia (thread size: 10 mm x 1.5) | Set of 4 |
| 9020-120 | 12 mm dia (thread size: 12 mm x 1.75) | Set of 4 |
| 9020-140 | 14 mm dia (thread size: 14 mm x 2.0) | Set of 2 |
| 9020-160 | 16 mm dia (thread size: 16 mm x 2.0) | Set of 2 |
| 9020-180 | 18 mm dia (thread size: 18 mm x 2.5) | Set of 2 |
| 9020-200 | 20 mm dia (thread size: 20 mm x 2.5) | Set of 2 |
| Imperial Backing Nuts | ||
|---|---|---|
| Part Number | Description | Sold As |
| 9026-040 | 1/4 in dia (thread size: 1/4 in x 20) | Set of 4 |
| 9026-050 | 5/16 in dia (thread size: 5/16 in x 18) | Set of 4 |
| 9026-060 | 3/8 in dia (thread size: 3/8 in x 16) | Set of 4 |
| 9026-070 | 7/16 in dia (thread size: 7/16 in x 14) | Set of 4 |
| 9026-080 | 1/2 in dia (thread size: 1/2 in x 13) | Set of 4 |
| 9026-090 | 9/16 in dia (thread size: 9/16 in x 12) | Set of 2 |
| 9026-100 | 5/8 in dia (thread size: 5/8 in x 11) | Set of 2 |
| 9026-120 | 3/4 in dia (thread size: 3/4 in x 10) | Set of 2 |
| 9026-160 | 1.00 in dia (thread size: 1.00 in x 10) | Set of 2 |
13.2.4. Jaw Jacks¶
Jaw Jacks are used in the Gleeble 3500, 3800, and 3180 to secure the specimen and grip assembly within the General-Purpose Pocket Jaws. Jaw Jacks come in three different styles. Standard U-Jacks can be used for low speed or low-force tension however they are best suited for thermal only tests. Conical Jacks are used in conjunction with Backing Nuts. These jacks are well suited for tension, compression, or thermal only tests of threaded specimens. Heavy Duty Jacks are best suited for compression testing.
|
|
|
| Standard U-Jacks | Conical Jacks | Heavy Duty Jacks |

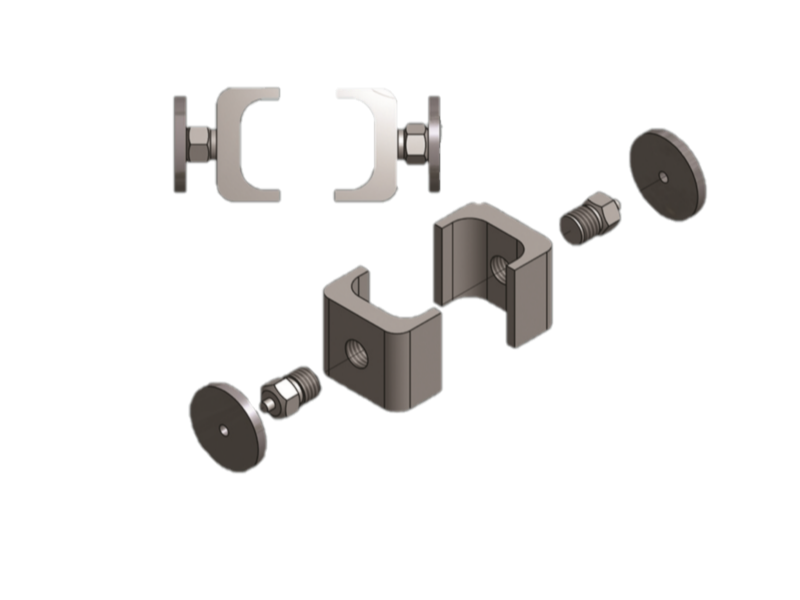

| U-Jacks | ||
|---|---|---|
| Part Number | Description | Sold As |
| GA00175A | Standard U-Jacks with plates - 2 per kit | Kit |
| GA00173A | Round Jaw Plate for standard U-shaped Jaw Jacks | Ea. |
| GA00174C | Long Screw Jaw Jack for standard U-shaped Jaw Jacks | Ea. |
| GA00175AD | Jaw Jack U-Clamp for standard U-shaped Jaw Jacks | Ea. |

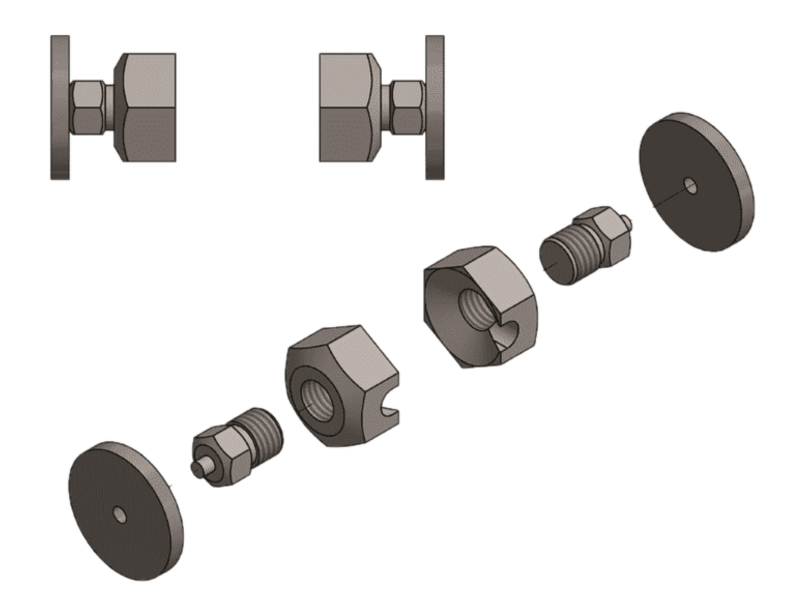

| Conical Jacks | ||
|---|---|---|
| Part Number | Description | Sold As |
| GA00175B | Conical Jacks with plates - 2 per kit | Ea. |
| GA00173A | Round Jaw Plate - Standard U-shaped Jaw Jacks | Ea. |
| GA00174A | Jaw Cone Jack | Ea. |
| GA00174C | Long Screw Jaw Jack - Standard U-shaped Jaw Jacks | Ea. |

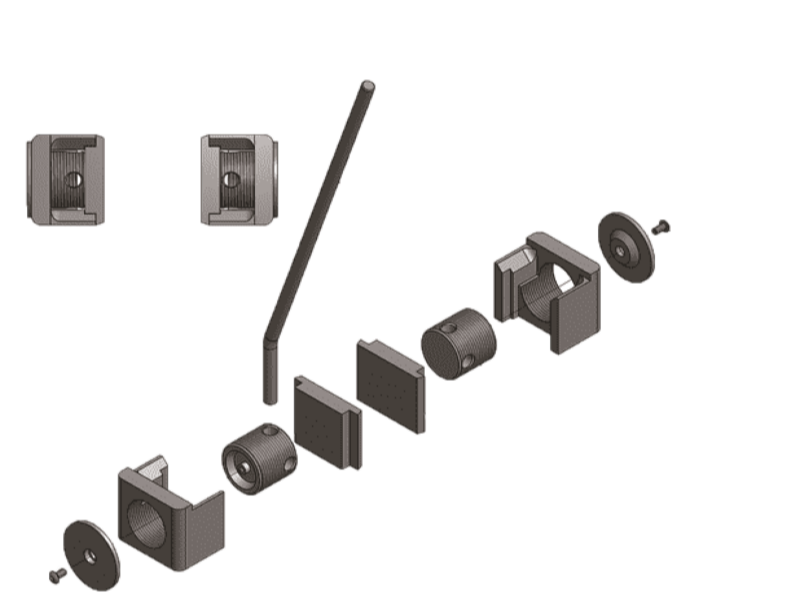

| Heavy Duty Jacks | ||
|---|---|---|
| Part Number | Description | Sold As |
| GA00197CA | Heavy Duty Jacks - 2 per kit | Kit |
| GA00197B | Heavy Duty Jaw Jack Base | Ea. |
| GA00197D | Heavy Duty Jaw Jack Screw | Ea. |
| GA00197E | Heavy Duty Jaw Jack Washer | Ea. |
| GA00197F | Heavy Duty Jaw Jack Handle | Ea. |
| GA00197G | Heavy Duty Jaw Jack Plate | Ea. |
| HE210 | 10-32 x 3/9 in LG. P.H.M.S SS Screw | Ea. |
13.3. 500 Series¶
Resized and redesigned specifically for the smaller platform of a Gleeble 500 Series systems these grips retain the exceptional performance of traditional Gleeble grips while increasing use-ability.
13.3.1. Copper Grips¶
Copper grips have a very high thermal and electrical conductivity. This allows them to cool the specimen down much faster than Stainless Steel. Due to Copper’s ability to transfer heat from the specimen to the liquid cooled wear plate faster than Stainless Steel grips consider using copper grips for applications which require fast cooling rates.
Another consideration in using Copper grips is the electrical conductivity of the material. Copper has a much higher electrical conductivity than Stainless Steel. This can allow for faster heating rates. However, copper grips can cause the thermal gradient to be very steep (narrow hot zone). This is desirable in some applications, such as hot ductility, welding, and casting, however other applications may require a more isothermal gradient.
13.3.1.1. Round¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a round grip contact area must be tested using Round Grips.
Full Contact Copper - Round
| Metric Full Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9300-040 | 4 mm | Set |
| 9300-050 | 5 mm | Set |
| 9300-060 | 6 mm | Set |
| 9300-070 | 7 mm | Set |
| 9300-080 | 8 mm | Set |
| 9300-090 | 9 mm | Set |
| 9300-100 | 10 mm | Set |
| Imperial Full Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9300-520 | 1/8 in | Set |
| 9300-530 | 3/16 in | Set |
| 9300-540 | 1/4 in | Set |
| 9300-550 | 5/16 in | Set |
| 9300-560 | 3/8 in | Set |
Partial Contact Copper - Round
| Metric Partial Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9308-040 | 4 mm | Set |
| 9308-050 | 5 mm | Set |
| 9308-060 | 6 mm | Set |
| 9308-070 | 7 mm | Set |
| 9308-080 | 8 mm | Set |
| 9308-090 | 9 mm | Set |
| 9308-100 | 10 mm | Set |
| Imperial Partial Contact Copper Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9308-520 | 1/8 in | Set |
| 9308-530 | 3/16 in | Set |
| 9308-540 | 1/4 in | Set |
| 9308-550 | 5/16 in | Set |
| 9308-560 | 3/8 in | Set |
13.3.1.2. Square¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a square grip contact area must be tested using Square Grips.
Full Contact Copper - Square
| Metric Full Contact Copper Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9301-040 | 4 mm | Set |
| 9301-050 | 5 mm | Set |
| 9301-060 | 6 mm | Set |
| 9301-070 | 7 mm | Set |
| 9301-080 | 8 mm | Set |
| 9301-090 | 9 mm | Set |
| 9301-100 | 10 mm | Set |
| 9301-110 | 11 mm | Set |
| Imperial Full Contact Copper Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9301-520 | 1/8 in | Set |
| 9301-530 | 3/16 in | Set |
| 9301-540 | 1/4 in | Set |
| 9301-550 | 5/16 in | Set |
| 9301-560 | 3/8 in | Set |
Partial Contact Copper - Square
| Metric Partial Contact Copper Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9309-040 | 4 mm | Set |
| 9309-050 | 5 mm | Set |
| 9309-060 | 6 mm | Set |
| 9309-070 | 7 mm | Set |
| 9309-080 | 8 mm | Set |
| 9309-090 | 9 mm | Set |
| 9309-100 | 10 mm | Set |
| 9309-110 | 11 mm | Set |
| Imperial Partial Contact Copper Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9309-520 | 1/8 in | Set |
| 9309-530 | 3/16 in | Set |
| 9309-540 | 1/4 in | Set |
| 9309-550 | 5/16 in | Set |
| 9309-560 | 3/8 in | Set |
13.3.1.3. Flat¶
Flat grips are used to secure flat, sheet, or strip specimens within the Gleeble system. These grips use a pin to retain the specimen between the grips, enabling tension forces to be applied to the specimen during testing.
|
|
|
|
| Grips with a 5mm Spring Pin are used for forces up to 18 kN in tension. | Grips with a 3/16 inch Tension Pin are used for forces up to 17 kN in tension. | Grips with a 10 mm Tension Pin are used for all other tests. |
Full Contact Copper - Flat - 3/16 in Or 10 mm Pins
| Metric Full Contact Copper Flat Grips 3/16 in Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9302-000 | 0.00 mm - 1.25 mm | Set |
| 9302-010 | 1.00 mm - 2.25 mm | Set |
| 9302-020 | 2.00 mm - 3.25 mm | Set |
| 9302-030 | 3.00 mm - 4.25 mm | Set |
| 9302-040 | 4.00 mm - 5.25 mm | Set |
| Metric Full Contact Copper Flat Grips 10 mm Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9302-500 | 0.00 mm - 1.25 mm | Set |
| 9302-510 | 1.00 mm - 2.25 mm | Set |
| 9302-520 | 2.00 mm - 3.25 mm | Set |
| 9302-530 | 3.00 mm - 4.25 mm | Set |
| 9302-540 | 4.00 mm - 5.25 mm | Set |
13.3.2. Stainless Steel Grips¶
Due to the lower electrical conductivity of Stainless steel, the grips themselves become hotter during the test, which makes the specimen more isothermal. Another way to make the specimen more isothermal is to use partial contact or hot grips. The small contact area on the specimen not only increases the electrical resistance, but also reduces the thermal sink. For the most uniform hot zone, consider using Stainless Steel Hot Grips.
13.3.2.1. Round¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a round grip contact area must be tested using Round Grips.
Full Contact Stainless Steel - Round
| Metric Full Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9311-040 | 4 mm | Set |
| 9311-050 | 5 mm | Set |
| 9311-060 | 6 mm | Set |
| 9311-070 | 7 mm | Set |
| 9311-080 | 8 mm | Set |
| 9311-090 | 9 mm | Set |
| 9311-100 | 10 mm | Set |
| Imperial Full Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9311-520 | 1/8 in | Set |
| 9311-530 | 3/16 in | Set |
| 9311-540 | 1/4 in | Set |
| 9311-550 | 5/16 in | Set |
| 9311-560 | 3/8 in | Set |
Partial Contact Stainless Steel - Round
| Metric Partial Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9310-040 | 4 mm | Set |
| 9310-050 | 5 mm | Set |
| 9310-060 | 6 mm | Set |
| 9310-070 | 7 mm | Set |
| 9310-080 | 8 mm | Set |
| 9310-090 | 9 mm | Set |
| 9310-100 | 10 mm | Set |
| Imperial Partial Contact Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9310-520 | 1/8 in | Set |
| 9310-530 | 3/16 in | Set |
| 9310-540 | 1/4 in | Set |
| 9310-550 | 5/16 in | Set |
| 9310-560 | 3/8 in | Set |
Hot Grip Stainless Steel - Round
| Metric Hot Grip Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9304-040 | 4 mm | Set |
| 9304-050 | 5 mm | Set |
| 9304-060 | 6 mm | Set |
| 9304-070 | 7 mm | Set |
| 9304-080 | 8 mm | Set |
| 9304-090 | 9 mm | Set |
| 9304-100 | 10 mm | Set |
| Imperial Hot Grip Stainless Steel Round Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9304-520 | 1/8 in | Set |
| 9304-530 | 3/16 in | Set |
| 9304-540 | 1/4 in | Set |
| 9304-550 | 5/16 in | Set |
| 9304-560 | 3/8 in | Set |
13.3.2.2. Square¶
Matching the geometry and size of the specimen is important to achieve the best Gleeble performance. Specimens that have a square grip contact area must be tested using Square Grips.
Full Contact Stainless Steel - Square
| Metric Full Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9312-040 | 4 mm | Set |
| 9312-050 | 5 mm | Set |
| 9312-060 | 6 mm | Set |
| 9312-070 | 7 mm | Set |
| 9312-080 | 8 mm | Set |
| 9312-090 | 9 mm | Set |
| 9312-100 | 10 mm | Set |
| 9312-110 | 11 mm | Set |
| Imperial Full Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9312-520 | 1/8 in | Set |
| 9312-530 | 3/16 in | Set |
| 9312-540 | 1/4 in | Set |
| 9312-550 | 5/16 in | Set |
| 9312-560 | 3/8 in | Set |
Partial Contact Stainless Steel - Square
| Metric Partial Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9305-040 | 4 mm | Set |
| 9305-050 | 5 mm | Set |
| 9305-060 | 6 mm | Set |
| 9305-070 | 7 mm | Set |
| 9305-080 | 8 mm | Set |
| 9305-090 | 9 mm | Set |
| 9305-100 | 10 mm | Set |
| 9305-110 | 11 mm | Set |
| Imperial Partial Contact Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9305-520 | 1/8 in | Set |
| 9305-530 | 3/16 in | Set |
| 9305-540 | 1/4 in | Set |
| 9305-550 | 5/16 in | Set |
| 9305-560 | 3/8 in | Set |
Hot Grip Stainless Steel - Square
| Metric Hot Grip Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9313-040 | 4 mm | Set |
| 9313-050 | 5 mm | Set |
| 9313-060 | 6 mm | Set |
| 9313-070 | 7 mm | Set |
| 9313-080 | 8 mm | Set |
| 9313-090 | 9 mm | Set |
| 9313-100 | 10 mm | Set |
| Imperial Hot Grip Stainless Steel Square Grips | ||
|---|---|---|
| Part Number | Specimen Size | Sold As |
| 9313-520 | 1/8 in | Set |
| 9313-530 | 3/16 in | Set |
| 9313-540 | 1/4 in | Set |
| 9313-550 | 5/16 in | Set |
13.3.2.3. Flat¶
Flat grips are used to secure flat, sheet, or strip specimens within the Gleeble system. These grips use a pin to retain the specimen between the grips, enabling tension forces to be applied to the specimen during testing.
|
|
|
|
| Grips with a 5mm Spring Pin are used for forces up to 18 kN in tension. | Grips with a 3/16 inch Tension Pin are used for forces up to 17 kN in tension. | Grips with a 10 mm Tension Pin are used for all other tests. |
Full Contact Stainless Steel - Flat - 3/16 in Or 10 mm Pin
| Metric Full Contact Stainless Steel Flat Grips 3/16 in Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9303-000 | 0.00 mm - 1.25 mm | Set |
| 9303-010 | 1.00 mm - 2.25 mm | Set |
| 9303-020 | 2.00 mm - 3.25 mm | Set |
| 9303-030 | 3.00 mm - 4.25 mm | Set |
| 9303-040 | 4.00 mm - 5.25 mm | Set |
| Metric Full Contact Stainless Steel Flat Grips 10 mm Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9303-500 | 0.00 mm - 1.25 mm | Set |
| 9303-510 | 1.00 mm - 2.25 mm | Set |
| 9303-520 | 2.00 mm - 3.25 mm | Set |
| 9303-530 | 3.00 mm - 4.25 mm | Set |
| 9303-540 | 4.00 mm - 5.25 mm | Set |
Full Contact Stainless Steel - Flat - 3/16 in Pin
| Metric Full Contact Stainless Steel Flat Grips 3/16 in Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9306-000 | 0.00 mm - 1.25 mm | Set |
| 9306-010 | 1.00 mm - 2.25 mm | Set |
| 9306-020 | 2.00 mm - 3.25 mm | Set |
| 9306-030 | 3.00 mm - 4.25 mm | Set |
| 9306-040 | 4.00 mm - 5.25 mm | Set |
Partial Contact Stainless Steel - Flat - 3/16 in Pin
| Metric Partial Contact Stainless Steel Flat Grips 3/16 in Pin | ||
|---|---|---|
| Part Number | Specimen Size Range | Sold As |
| 9307-000 | 0.00 mm - 1.25 mm | Set |
| 9307-010 | 1.00 mm - 2.25 mm | Set |
| 9307-020 | 2.00 mm - 3.25 mm | Set |
| 9307-030 | 3.00 mm - 4.25 mm | Set |
| 9307-040 | 4.00 mm - 5.25 mm | Set |
13.3.3. Backing Nuts¶
To best secure a specimen in the Gleeble Pocket Jaws for tension and basic compression tests, Backing Nuts are used. Threaded onto the ends of the specimen these Nuts provide safe and secure tension within the Grips and Jaw assemblies. Backing Nuts are threaded for round samples with a specified thread diameter and pitch.
| Metric Backing Nuts | ||
|---|---|---|
| Part Number | Description | Sold As |
| 9320-040 | 4.0 mm dia threaded specimens | Set of 4 |
| 9320-050 | 5.0 mm dia threaded specimens | Set of 4 |
| 9320-060 | 6.0 mm dia threaded specimens | Set of 4 |
| 9320-070 | 7.0 mm dia threaded specimens | Set of 4 |
| 9320-080 | 8.0 mm dia threaded specimens | Set of 4 |
| 9320-090 | 9.0 mm dia threaded specimens | Set of 4 |
| 9320-100 | 10.0 mm dia threaded specimens | Set of 4 |
| Imperial Backing Nuts | ||
|---|---|---|
| Part Number | Description | Sold As |
| 9321-020 | 1/8 in dia threaded specimens | Set of 4 |
| 9321-030 | 3/16 in dia threaded specimens | Set of 4 |
| 9321-040 | 1/4 in dia threaded specimens | Set of 4 |
| 9321-050 | 5/16 in dia threaded specimens | Set of 4 |
| 9321-060 | 3/8 in dia threaded specimens | Set of 4 |
13.4. Specialty Grips¶
Special order or custom grips are available. If you require custom grips please contact a Sales Representative.
13.4.1. Torsion Grips¶
For Hot Torsion MCU collet grips see Collet Grips .
13.4.2. Nil-Strength Grips¶
For Nil-Strength grips see Nil-Strength Grips.
